The Ultimate Guide to Full 20mm Conduit Lighting Systems

Conduit lighting systems are a great way to add both style and function to your space. Made from strong **20mm metal parts**, these lighting systems are built to last and look good in any room. Whether you’re designing a modern home, a café, or an office, a 20mm conduit lighting system offers many design options. In this guide, we will explain the main parts of a 20mm conduit lighting system, including pipes, lamp holders, switches, and light fixtures. We’ll show you how each part works together to create a lighting system that is both practical and stylish.

"Transform your space with a simple and stylish DIY conduit pipe wall light. Check out our easy guide and find more creative ideas at How to Build Your Own Conduit Pipe Wall Light to personalize your home."

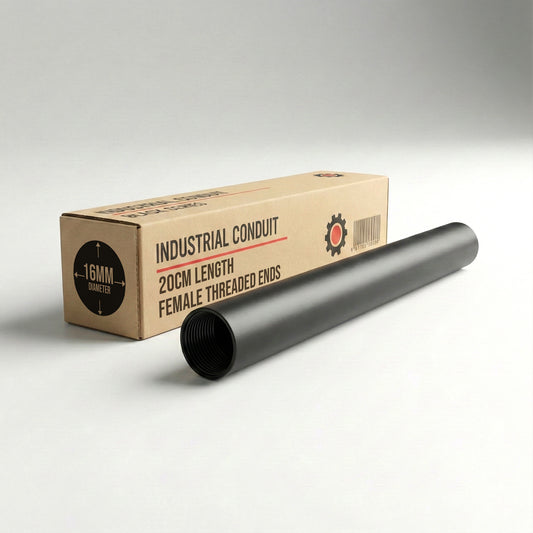

20mm Female Thread Pipe

• Material: Metal
• Purpose: This pipe is used to route wiring and provide structural support in conduit lighting systems. Available in various lengths, it allows for flexible installation based on room layout and desired style.
• Features & Benefits:
• High-strength, durable metal construction ensures long-lasting performance.
• Rust-resistant, making it suitable for both indoor and outdoor environments.
• Protects electrical wiring while giving a sleek, industrial appearance.
• Note: Connects seamlessly to threaded conduit pipes using a standard steel nipple, ensuring a secure and reliable fit.
• Available Lengths: 20 cm, 30 cm, 50 cm, 80 cm

Hollow Thread Screw (Nipple)

• Material: Galvanized Steel
• Purpose: Provides a secure connection for conduit pipe lighting systems.
• Features & Benefits:
• Galvanised steel construction ensures durability and corrosion resistance.
• 20mm male thread size for a secure and compatible fit.
• Can be tightened by hand or with a screwdriver for ease of installation.
• Suitable for both indoor and outdoor lighting setups.

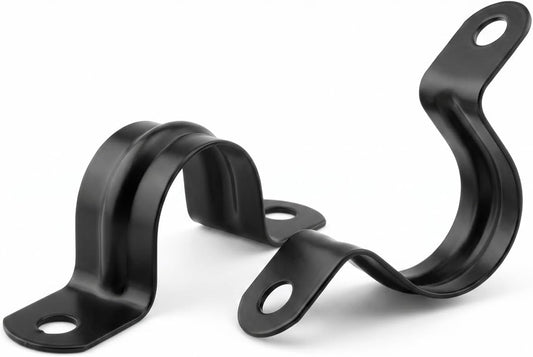

20mm Distance Saddle Mount Metal Bracket

• Material: Metal
• Purpose: Keeps conduit pipes securely in place at a fixed distance from the surface, ensuring proper alignment and support.
• Features & Benefits:
• Corrosion-resistant metal for durability.
• Easy installation with screws.
• Provides secure mounting and allows for easy adjustments during setup.

90-Degree Two Types Of Bend

90-Degree Bend (Smooth Angle Bend)

• Material: Metal
• Colour: Black, White, Yellow Brass, Satin Nickel, Chrome, French Gold, Copper, Rose Gold
• Description: This smooth bend allows conduit to curve gently around obstacles, maintaining the integrity of the wires inside by creating a gradual angle instead of a sharp turn.

90-Degree Bend (Sharp Angle Bend)

• Material: Metal
• Colour: Black
• Description: Provides a sharp 90-degree turn, changing the direction of the conduit precisely at a right angle. Ideal for tight spaces or when an exact directional shift is required.

20mm Conduit Solid Tee 3-Way Connector

Material: Metal

Purpose: Facilitates branching connections between conduit pipes for efficient wiring configurations.

Colour: Black

Features:

• Durable Metal Build: Offers exceptional durability and corrosion resistance for long-lasting use.
• 3-Way Connector: Enables branching connections between conduit pipes for flexible and efficient wiring setups.
• Perfect Fit for 20mm Conduit: Designed to seamlessly connect to standard 20mm threaded conduit systems

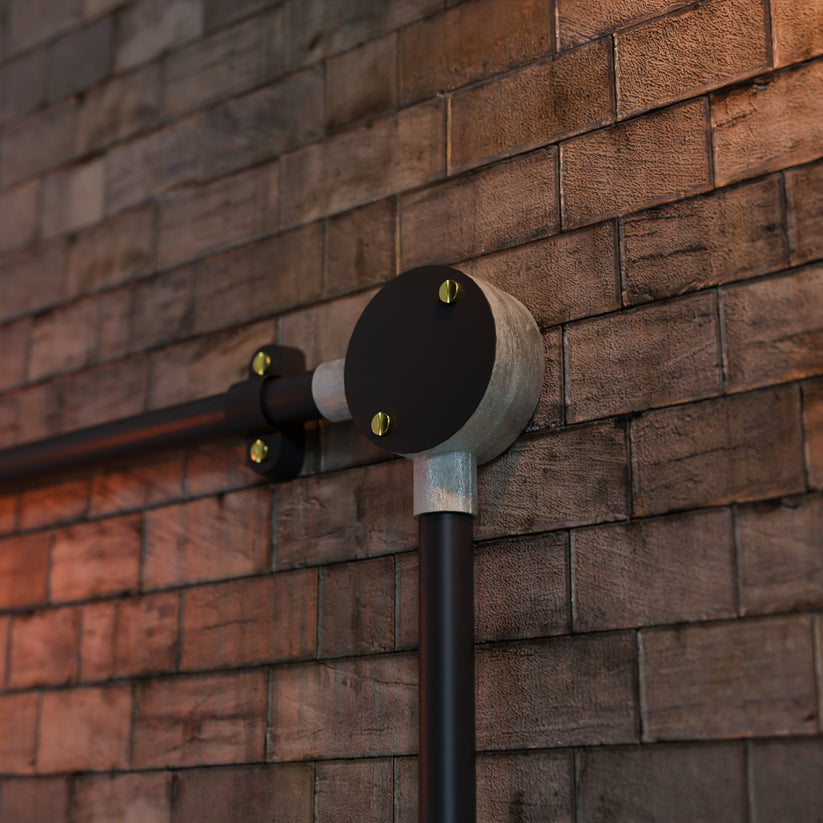

Terminal Outlet Box (1/2 Way, 2 Angle Way [L], 3-Way Tee, 4-Way - 20mm)

Material: Galvanized Steel

Purpose: The outlet box serves as the termination point for conduit lines, providing a secure location for making electrical connections. It supports multiple outlet configurations depending on the system’s requirements.

Features & Benefits:

• Supports various electrical setups with 1, 2, 3, or 4 outlets.
• Durable galvanised steel construction ensures strength and corrosion resistance.
• Provides safe and secure wiring connections for reliable performance.
• Available Types: 1/2 Way, 2 Angle Way [L], 3-Way Tee, 4-Way

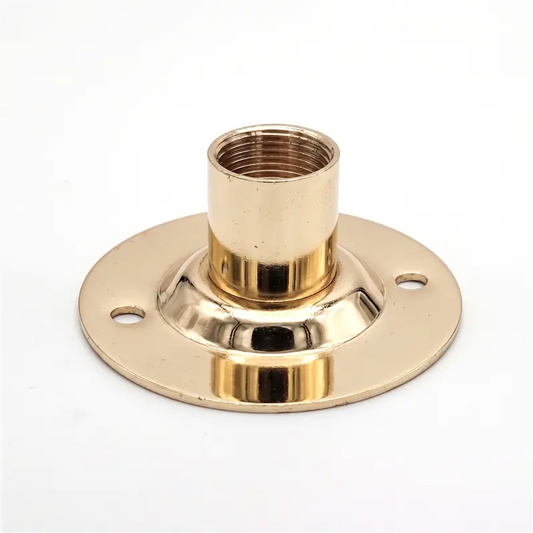

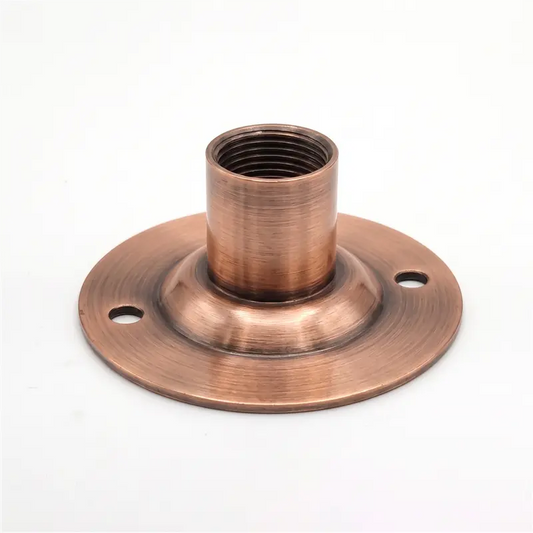

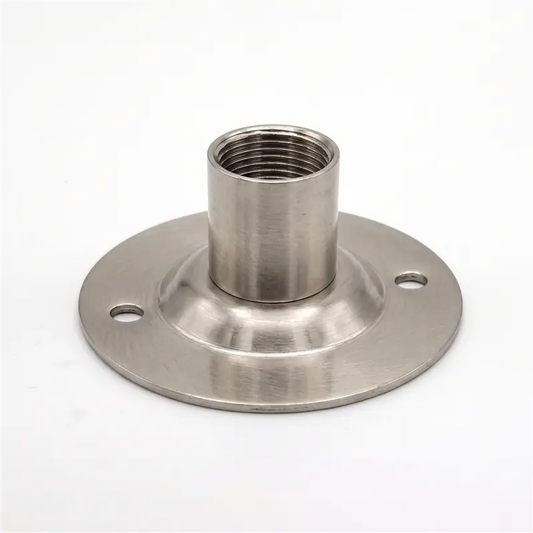

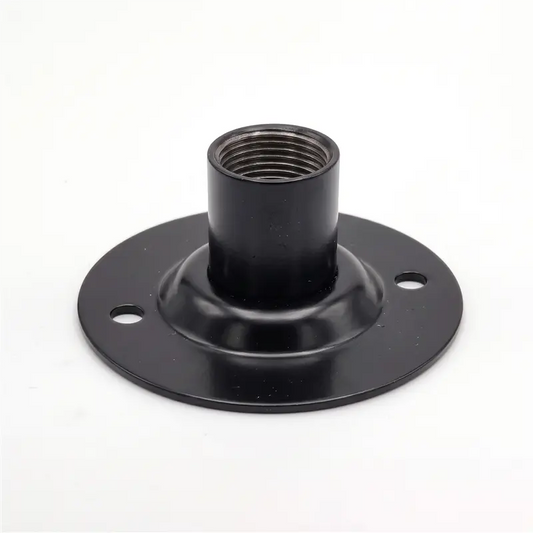

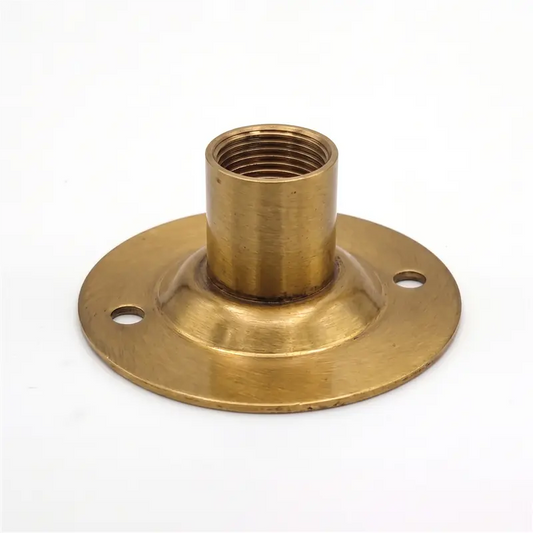

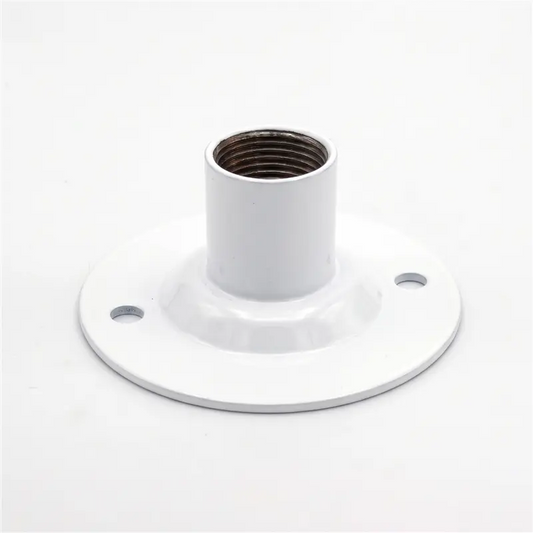

Conduit 20mm Metal Dome Cover

Material: Metal

Purpose: Provide a protective cover for conduit boxes, securing electrical connections from external elements.

Colour: Black, Yellow Brass, Rose Gold, Satin Nickel, Copper, White, Chrome, and French Gold

Features & Benefits:

• Durable Metal Build Ensures longevity and resistance.
• Perfect Fit Designed for secure attachment to 20mm conduit systems.

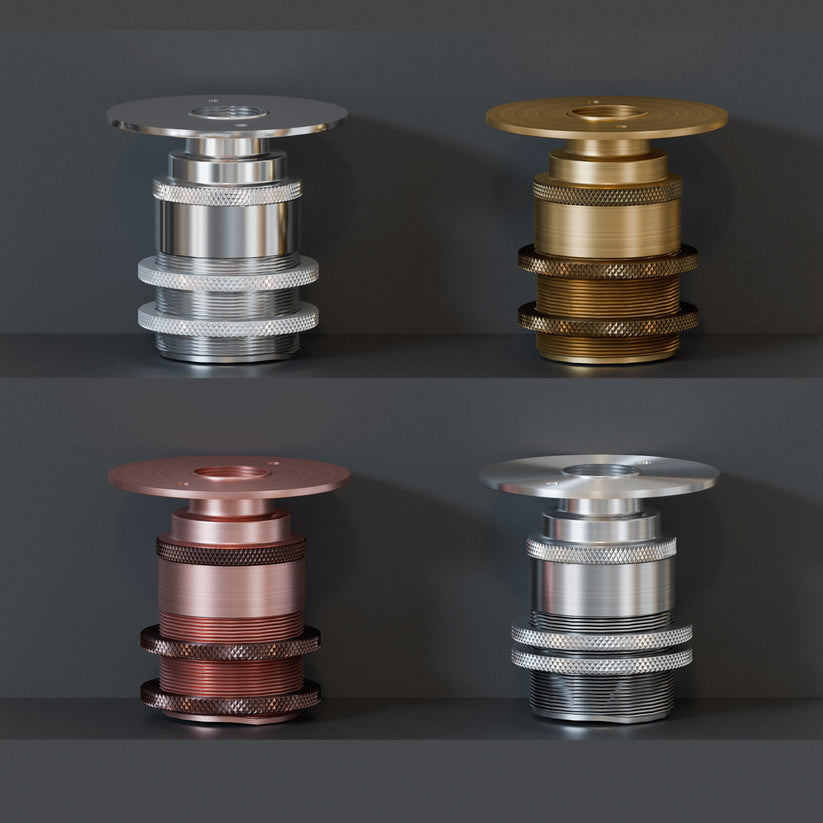

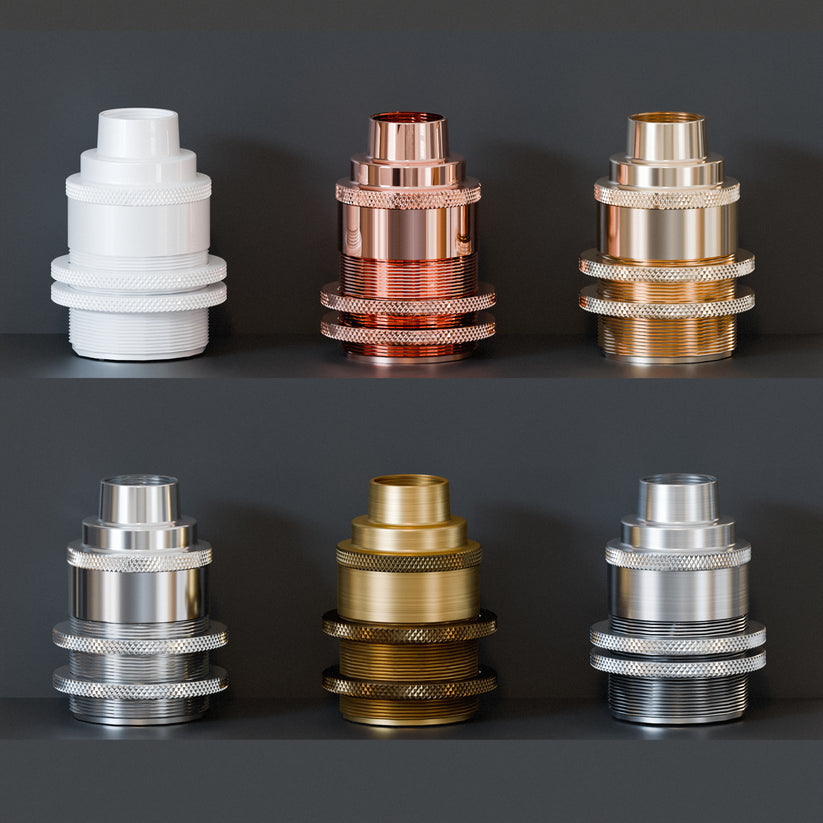

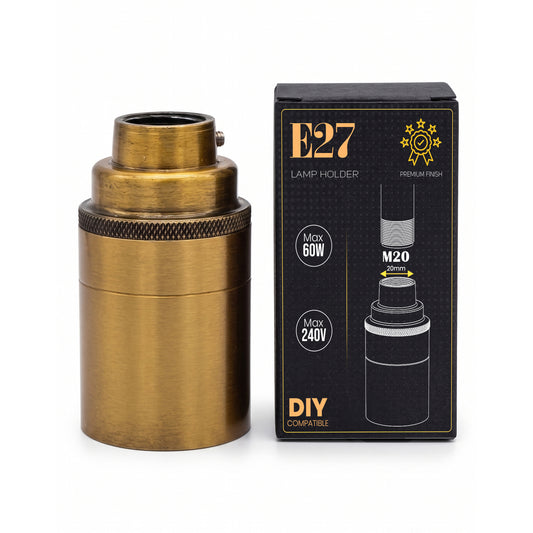

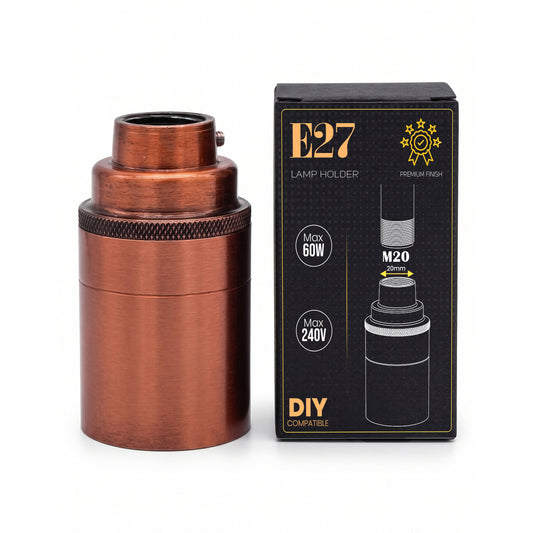

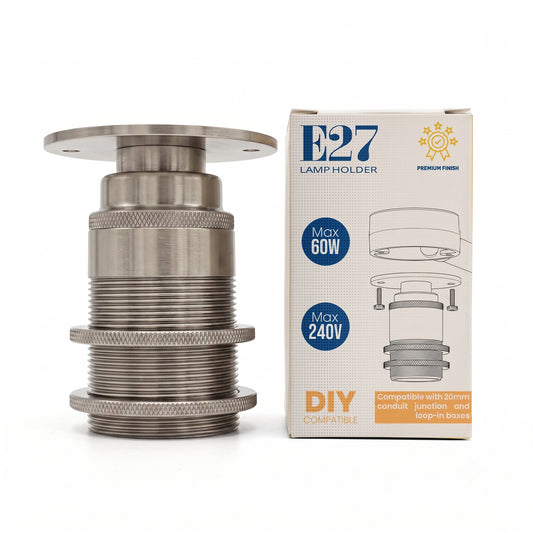

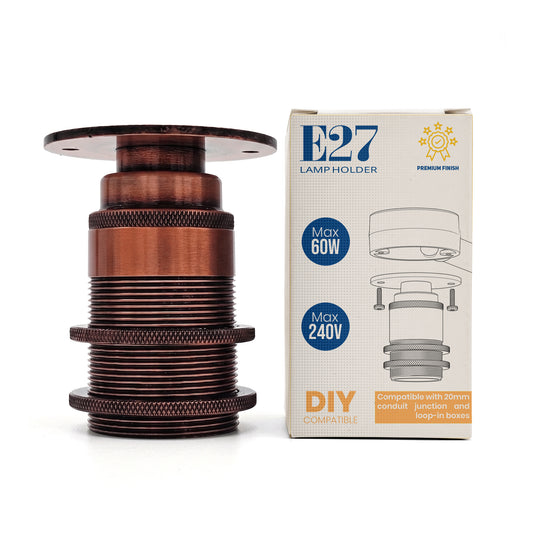

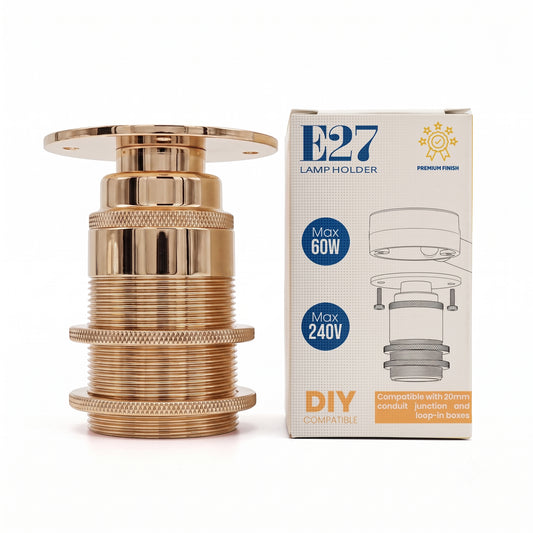

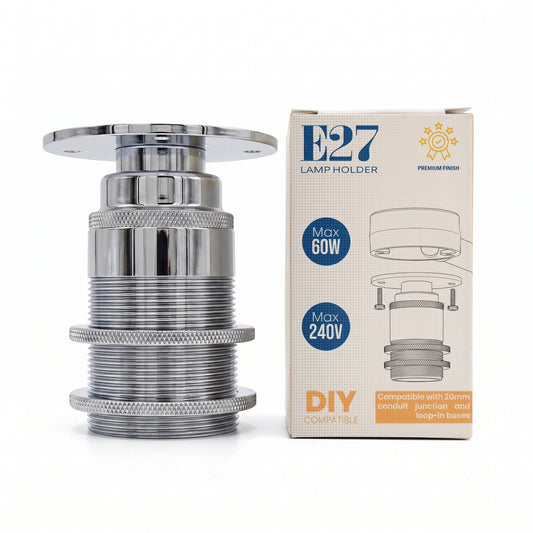

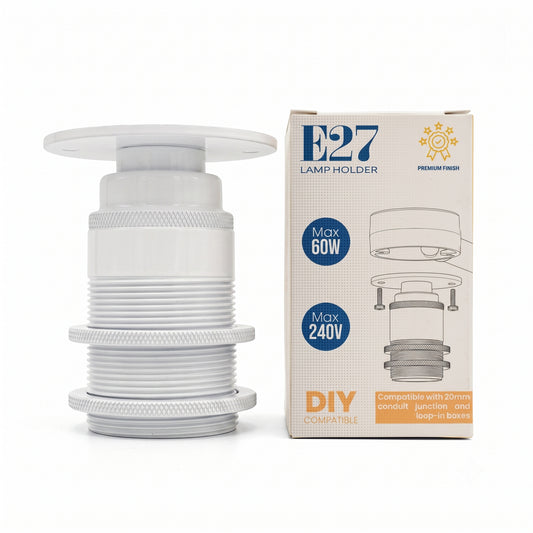

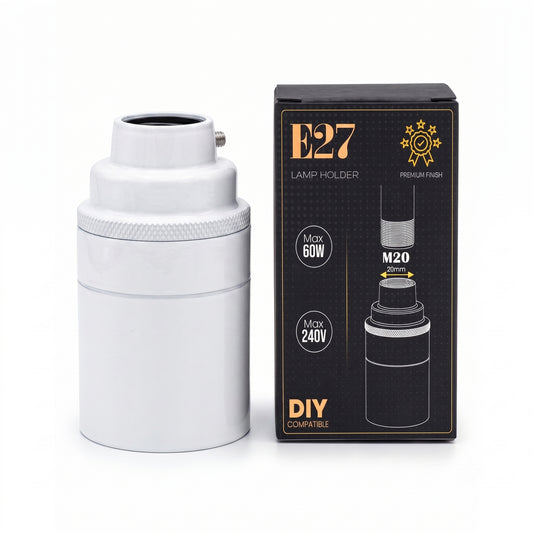

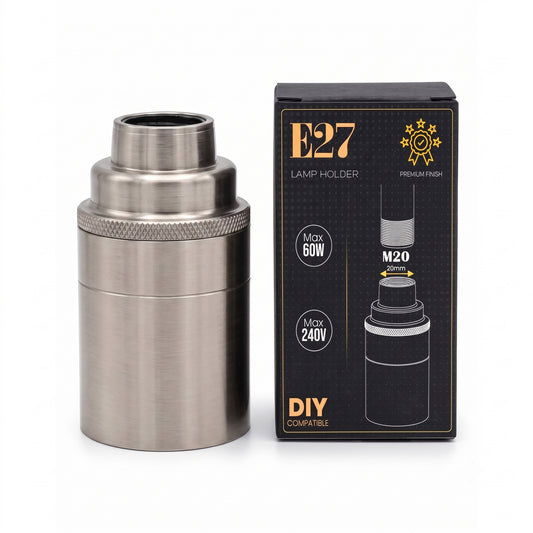

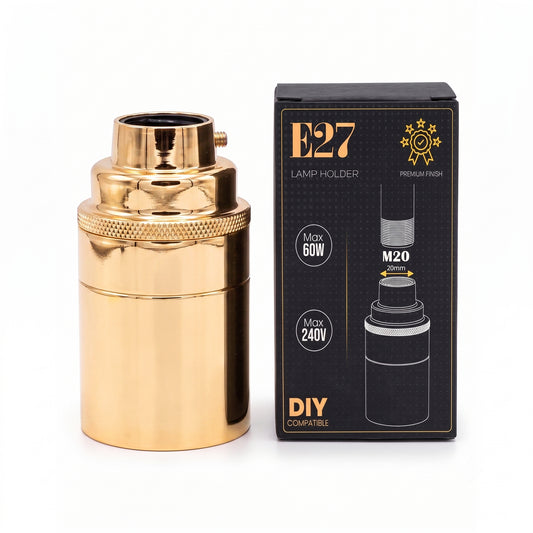

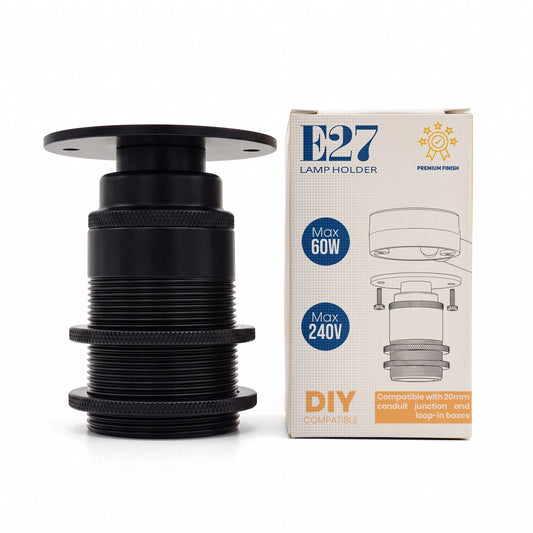

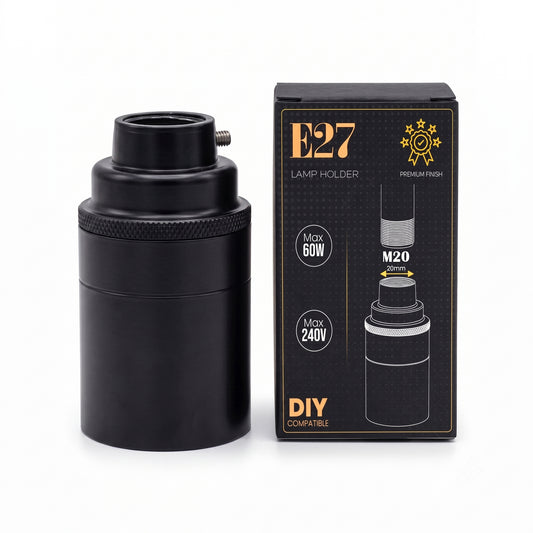

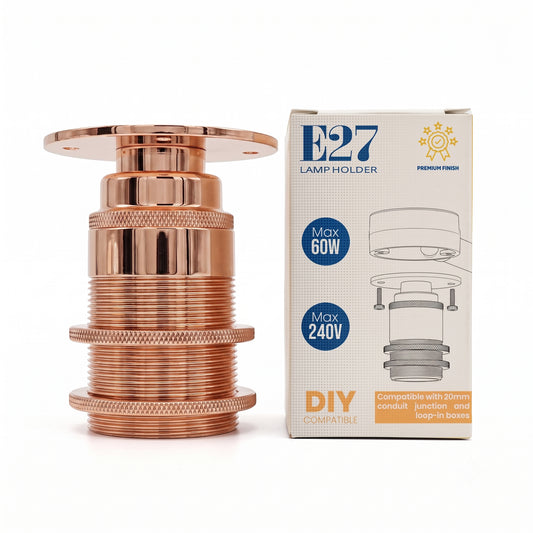

20mm Conduit Entry Lampholder

The 20mm Conduit Entry Lampholder helps secure light fixtures to conduit pipes, ensuring easy installation.

• Material: Metal
• Available colours: white, black, satin nickel, yellow brass, copper, chrome, and rose gold.

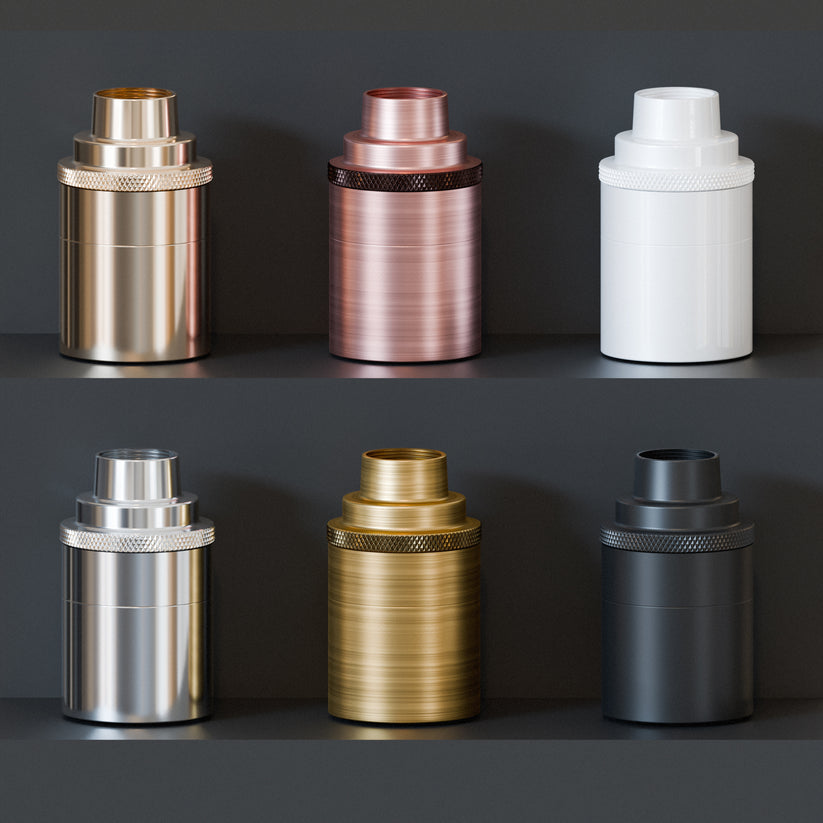

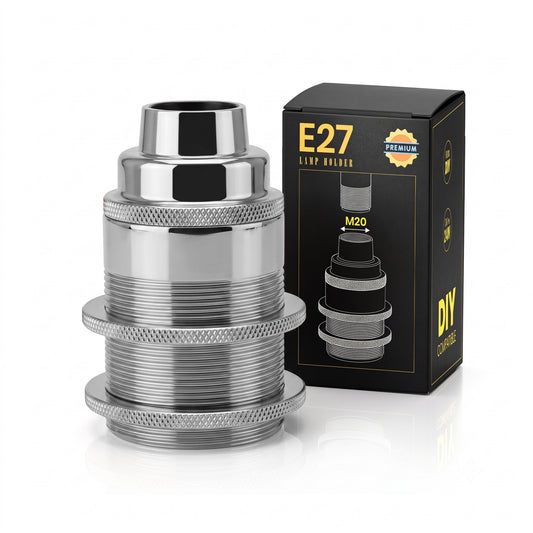

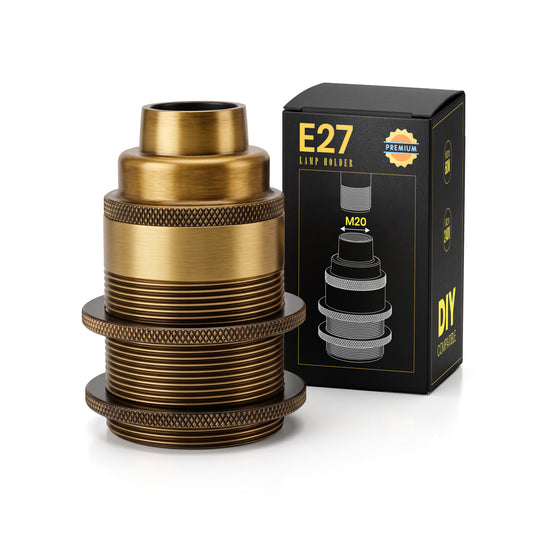

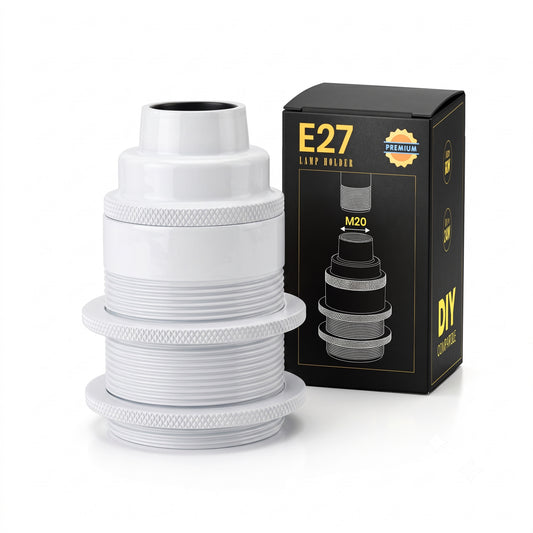

Types of Lampholders

20mm Conduit Lighting Bush Converter

Bush converters convert larger conduit fittings to smaller sizes for seamless integration in lighting systems.

• Material: High-quality metal, durable, and corrosion-resistant.
• Purpose: Converts larger conduit fittings to smaller sizes for seamless integration in lighting systems.
• Features:
• Effortless Installation: Easy-to-install push-fit or threaded design for secure and quick connections.
• Reliable Sealing: Provides a tight seal to prevent the ingress of water, dust, or debris.

Available Types:

• M20 Metric Female to M10 Female Thread Bushing

• M20 Metric Male to M10 Female Thread Bush Reducing Connector

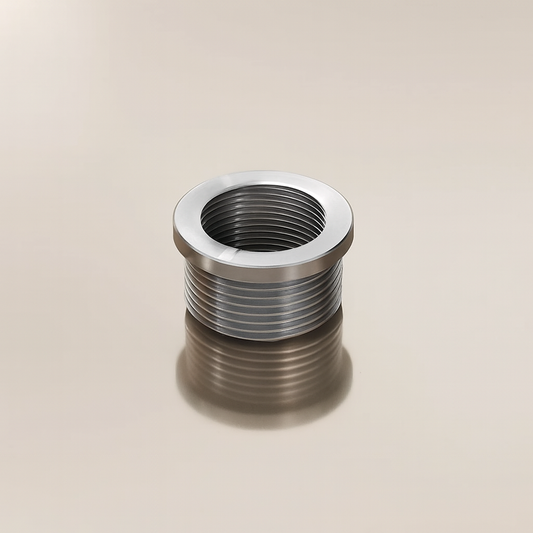

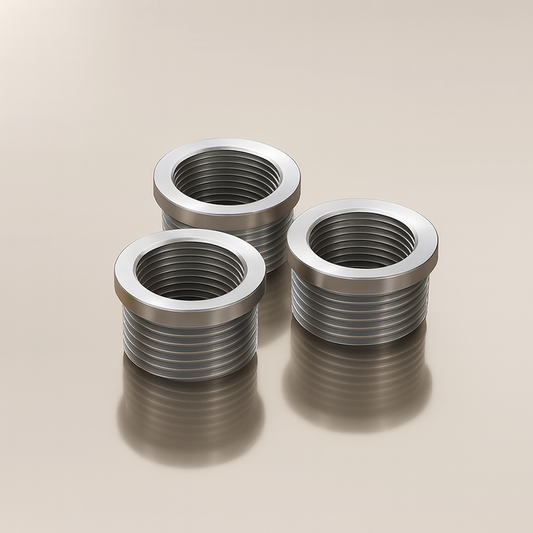

• 20mm Female to 3/4" Male Reducing Bush Converter

Switches

Dimmer Rotary Switch

• Material: Metal
• Purpose: Combines on/off control with brightness adjustment using a classic rotary mechanism.
• Features & Benefits:
• Enables precise brightness control, enhancing ambiance.
• Compatible with dimmable bulbs, allowing full customisation of light intensity.

ON-OFF Switch

This component provides simple on/off control for lighting fixtures.

• Material: Metal
• Purpose: Provides simple on/off control for lighting fixtures.
• Features & Benefits:
• Easy-to-use design for quick and reliable operation.
• Compact and space-saving, perfect for small spaces.

Conduit Lighting System Wire Cages: Perfect for Your Retro Spaces

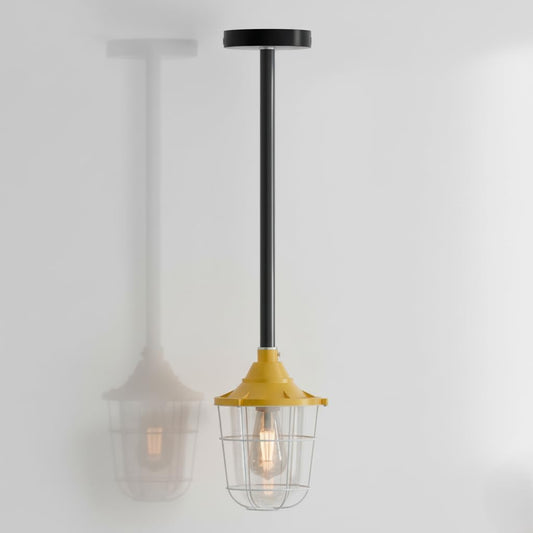

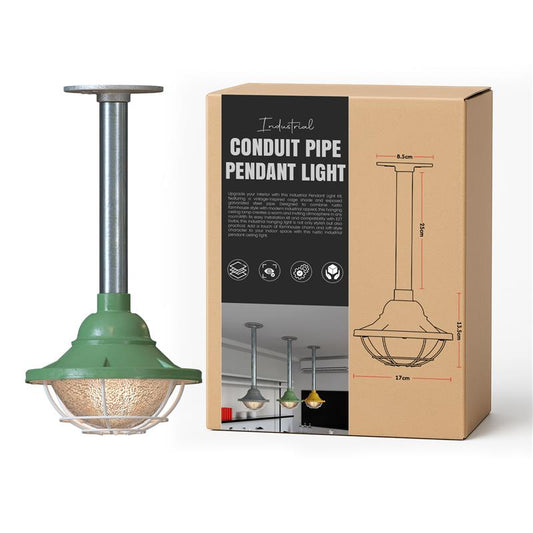

1. Fisherman Caged Conduit Pipe Light Shade 3/4" Entry Wall Lantern with Glass

• This conduit pipe light is a great addition to both indoor and outdoor spaces. Its durable die-cast metal housing and tempered glass ensure longevity, while the industrial-style cage adds character.
• Colour: Yellow, Grey, Green

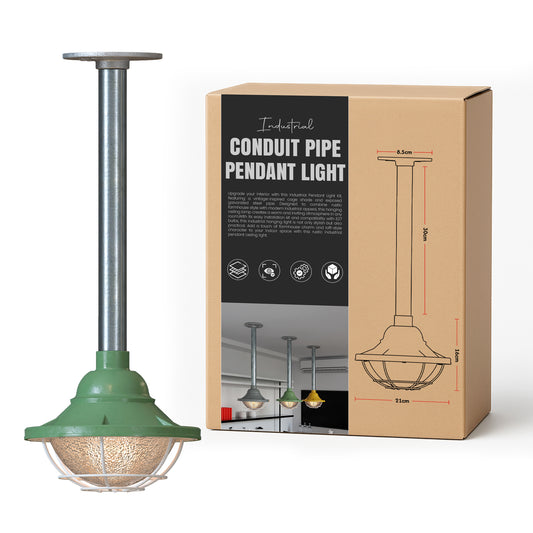

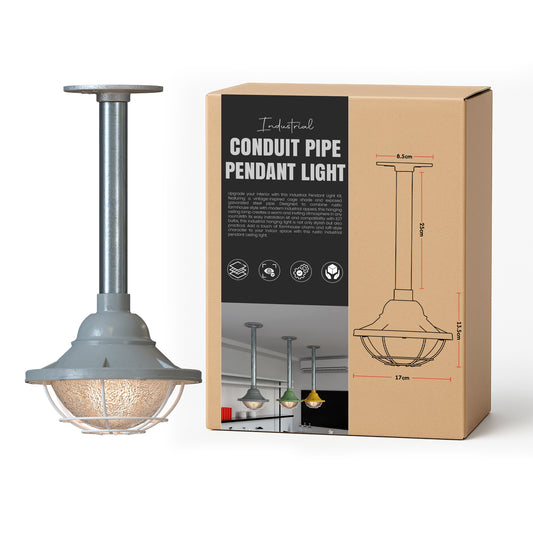

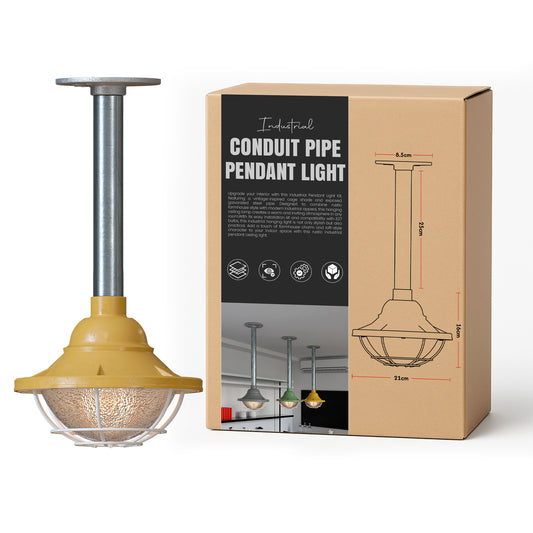

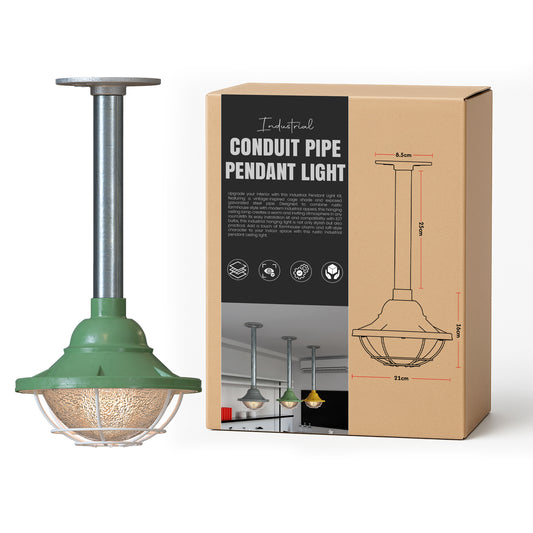

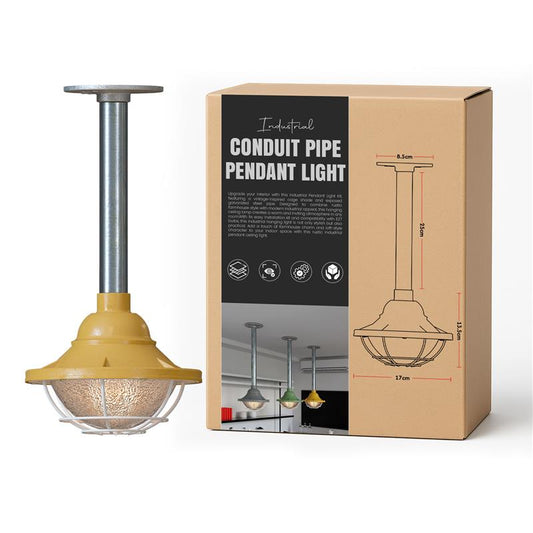

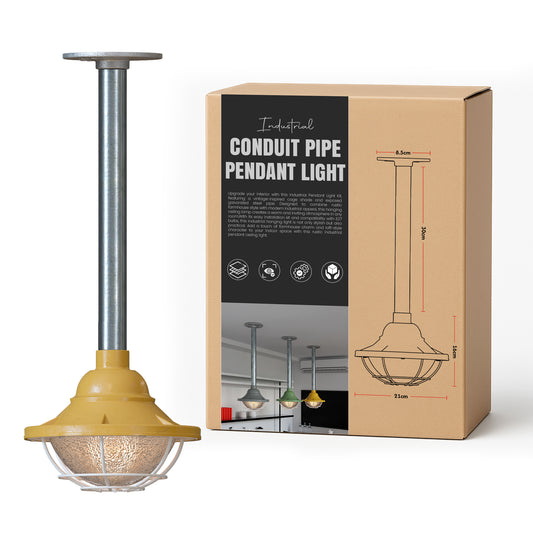

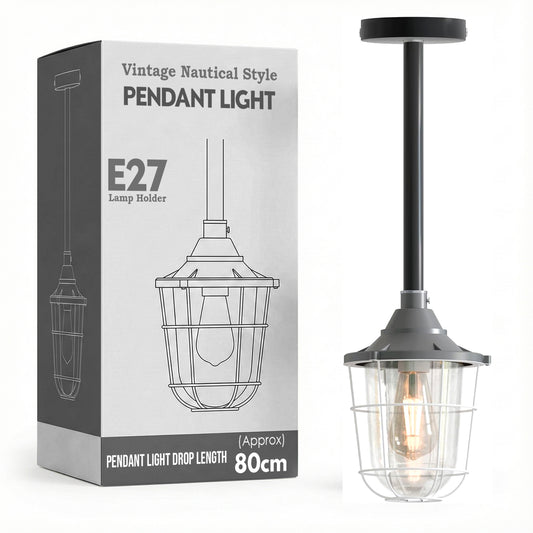

2. Industrial Metal Wire Cage Pipe Pendant Hanging Light

• Looking for a rustic, industrial look? This pendant light with a weathered metal cage and polished finish is the perfect fit. It connects easily to 3/4" conduit pipes and supports an E27 bulb.
• Colour: Yellow, Grey, Green

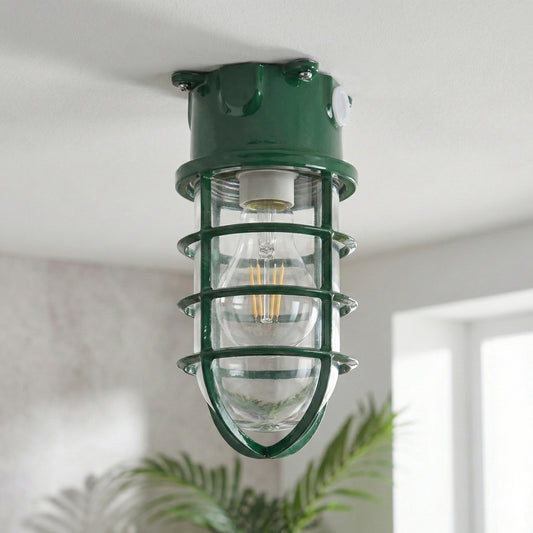

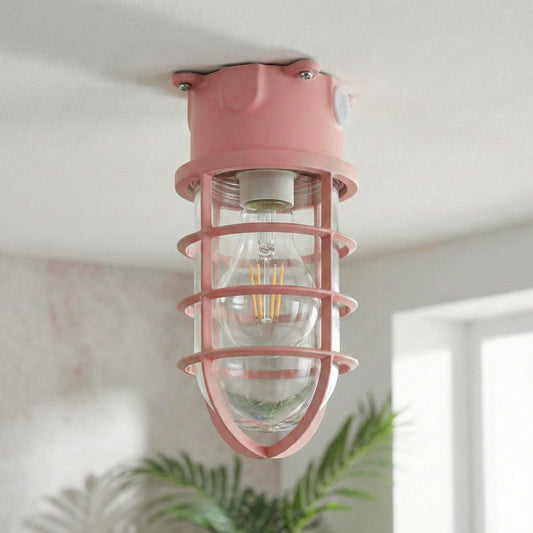

3. Bunker Bulkhead Cage Wall Sconce Lamp Light

Two Types of Wall Light Wire Cage Available:

1. Bunker Bulkhead Cage: Standard cage light design.

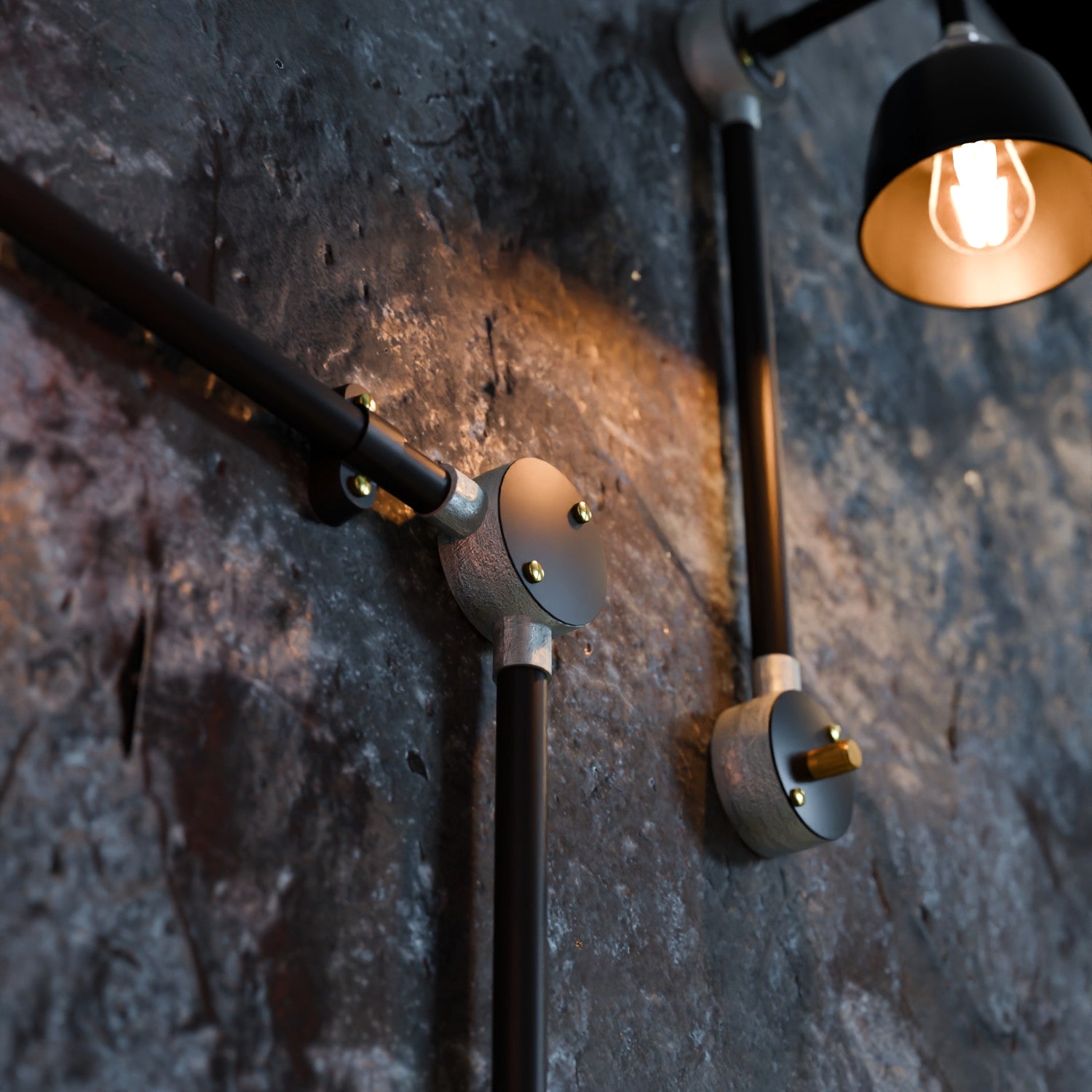

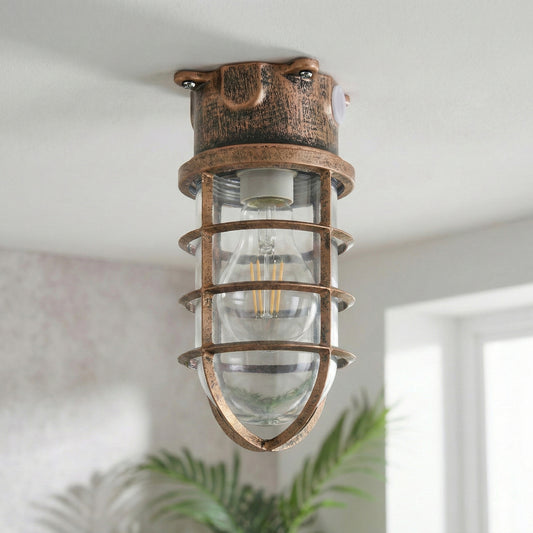

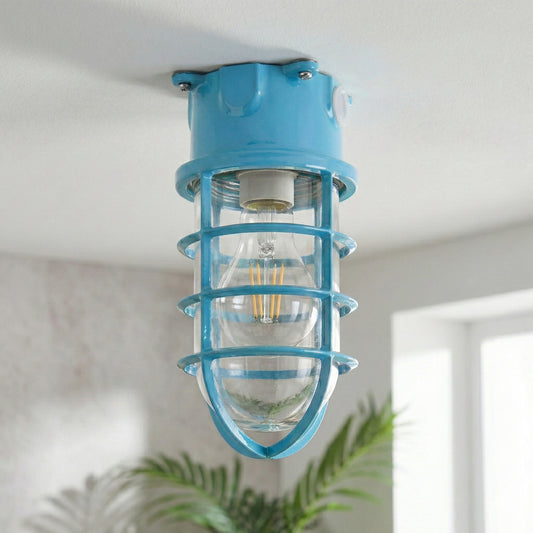

2. Bunker Bulkhead Cage with Terminal Box (Ceiling Rose): A versatile option for wall or ceiling mounting.



3. Bunker Bulkhead Cage Ceiling Sconce Lamp Light:

   • Colors: Black, Brushed Copper, Light Blue, Grey, and Pink.


Conclusion: Why Choose a 20mm Conduit Lighting System?
