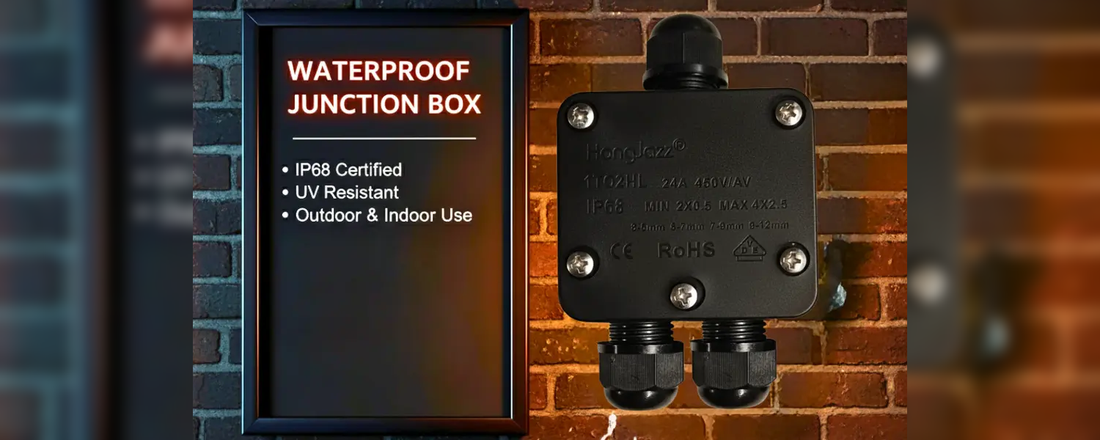

Ultimate Guide to Junction Boxes (Types, Uses, IP Ratings, Installation)

Right then, let's talk about junction boxes. You know, those little unassuming boxes that hide away your electrical connections. They're not the most glamorous part of any electrical setup, but honestly, they're pretty important. Whether you're a seasoned pro or just tinkering around the house, understanding what these boxes do, the different kinds available, and how to fit them properly is key to keeping things safe and working as they should. We'll go through everything from what they're made of to how waterproof they need to be, so you can get a handle on this essential bit of kit.

Key Takeaways

• Different junction boxes are designed for specific environments, like plastic for general indoor use and metal for tougher conditions. Always pick the right type for the job.

• Understanding IP ratings is vital, especially for outdoor or damp areas. IP65 offers dust and water jet protection, while IP68 means it can be submerged.

• Installation is straightforward but requires care. Ensure all connections are secure and the box is properly sealed to protect the wiring inside.

• The size of your junction box depends on the number and type of wires you need to accommodate, plus any connections or modules.

• Junction boxes are crucial for safety, preventing exposed wires and potential hazards like electrical fires or shocks.

• For outdoor use, look for boxes with high IP ratings (IP65 or higher) and UV-resistant materials to withstand the elements.

• Explosion-proof junction boxes are specialised for hazardous environments where flammable gases or dust might be present.

• Always turn off the power at the mains before working on any junction box or electrical connection, and use a voltage tester to be absolutely sure.

• Browse our IP68 waterproof junction boxes

Types of Junction Boxes Explained (Complete Guide)

Right then, let's talk junction boxes. These aren't the flashiest bits of kit in an electrical setup, but they're absolutely vital for keeping things safe and tidy. Think of them as the central hubs where different wires meet up. Without them, you'd have a right mess of exposed connections, which is a recipe for disaster. There's a whole range of them out there, each designed for a specific job and environment.

We've got the standard ones, often made of plastic or metal, that you'll see tucked away in ceilings or walls. These are your everyday workhorses. Then there are more specialised types, like those built for outdoor use, which need to be tough and waterproof. You also get boxes designed for specific tasks, such as housing connections for lighting circuits or even for more complex systems like CCTV.

It's not just about what they look like, though. The material they're made from matters – metal boxes are generally tougher, while plastic ones are lighter and easier to work with. And the size? That's a big one too, as you need enough space for all the wires and connectors without cramming them in.

Here's a quick rundown of some common types you'll come across:

• Standard Plastic Boxes: Lightweight, easy to install, and good for general indoor use. They're often used for simple connections in domestic settings.

• Metal Boxes: More robust and durable, offering better protection. These are often used where there's a risk of impact or in more industrial settings. They can also offer better protection against electromagnetic interference.

• Weatherproof/Outdoor Boxes: Built to withstand the elements, these have seals and gaskets to keep water and dust out. Essential for any external wiring.

• Flush-Mount Boxes: Designed to be installed within a wall cavity, so they sit neatly behind the plasterboard or wall surface. You'll often see these when installing switches and sockets.

• Surface-Mount Boxes: These are attached directly to the surface of a wall or ceiling. They're simpler to install as they don't require cutting into the wall.

• Specialist Boxes: This category includes everything from explosion-proof boxes for hazardous environments to specific enclosures for things like CCTV cameras or solar panel connections. These are built to very particular standards.

Choosing the right type of junction box is more than just a practical step; it's a safety requirement. Using the wrong box for the job can lead to all sorts of problems down the line, from loose connections to potential fire hazards. Always make sure the box you select is suitable for the environment and the electrical load it will be handling. For anything involving mains wiring, it's always best to consult with a qualified electrician if you're unsure. You can find a good range of electrical junction boxes suitable for various applications.

Understanding these different types is the first step to ensuring your electrical installations are safe, compliant, and built to last. It might seem a bit technical at first, but once you get the hang of it, it's pretty straightforward.

Plastic vs Metal Junction Box – Which is Better?

When you're setting up any kind of electrical system, whether it's for your home or a commercial project, you'll come across junction boxes. These are basically enclosures that protect your electrical connections. A big decision you'll face is whether to go for a plastic or a metal one. Both have their pros and cons, and what's 'better' really depends on where you're putting it and what you need it to do.

Plastic junction boxes are generally lighter and cheaper. They're also non-conductive, which can be a plus in certain situations. They don't rust, which is handy if you're in a damp environment, though they might not hold up as well to extreme temperatures or physical impacts compared to metal. They're pretty common for indoor domestic wiring, especially where cost is a big factor.

Metal junction boxes, on the other hand, are usually seen as more robust. They offer better protection against physical damage and can even provide a degree of fire resistance. A really significant advantage of metal boxes is their ability to be earthed, which is a vital safety feature in many installations. They also tend to be more rigid, which can make mounting equipment inside them a bit more straightforward and contribute to a higher resale value by signalling a quality installation. You'll often find these used in more demanding environments or where extra durability is needed. For instance, if you're running conduit systems, metal boxes are often the go-to choice for their strength and grounding capabilities. You can find a good range of metal conduit fittings that pair well with these boxes.

Here's a quick rundown:

• Plastic Boxes:

  • Lighter and more affordable.

  • Non-conductive.

  • Resistant to rust.

  • Good for general indoor use.

• Metal Boxes:

  • More durable and rigid.

  • Offer grounding capabilities.

  • Better protection against physical impact and fire.

  • Often preferred for industrial or exposed applications.

The choice between plastic and metal often comes down to the specific demands of the installation. Consider the environment, the need for grounding, and the level of physical protection required. For many standard indoor applications, plastic is perfectly adequate and cost-effective. However, for tougher conditions or where safety regulations mandate it, metal is usually the superior option.

Ultimately, both types serve the same basic purpose: to keep your electrical connections safe and tidy. It’s just about picking the right tool for the job. If you're looking for sturdy, reliable enclosures, especially for systems involving conduit, exploring options like armoured cable junction boxes might be worthwhile.

IP20 vs IP65 vs IP68 Junction Boxes (Full Guide)

Right then, let's talk about junction boxes and their fancy IP ratings. You've probably seen them – those little plastic or metal boxes where all your wires meet up. But not all junction boxes are created equal, especially when it comes to keeping the weather out. That's where IP ratings come in.

What's an IP Rating Anyway?

IP stands for 'Ingress Protection'. Basically, it's a two-digit code that tells you how well something is protected against solid objects (like dust) and liquids (like water). The first digit is for solids, and the second is for liquids. The higher the number, the better the protection. Simple, really.

The Main Players: IP20, IP65, and IP68

Let's break down what these common ratings actually mean for your junction boxes:

• IP20: This is your most basic level of protection. It means the box is protected against solid objects bigger than 12.5mm (so, your fingers can't get in easily) but offers absolutely no protection against water. You'll find these inside, in dry areas, like a loft or a dry cupboard. Definitely not for anywhere damp or outdoors.

• IP65: Now we're getting somewhere. The '6' here means it's dust-tight – no dust is getting in there, no matter what. The '5' means it can handle water jets from any direction. Think of it like a strong shower spray. This makes IP65 junction boxes a really popular choice for many outdoor applications, like sheds or under eaves where they might get splashed but not submerged. They're a good all-rounder for general outdoor use.

• IP68: This is the top tier for most common uses. The '6' again means it's dust-tight. The '8' is the big one – it means the box is protected against continuous immersion in water under conditions specified by the manufacturer. Usually, this means it can be fully submerged, often to a depth of 1 metre or more, for a set period. These are the ones you want for anything that's going to be underwater, like garden pond pumps or buried cables. They're built tough to handle serious wet conditions.

Quick Comparison Table

IP Rating	Solid Protection	Liquid Protection
IP20	Protected against objects >12.5mm	None
IP65	Dust-tight	Protected against water jets
IP68	Dust-tight	Protected against continuous immersion

Choosing the right IP rating is super important. Using an IP20 box outside is just asking for trouble – water gets in, wires corrode, and you've got a potential fire hazard or a short circuit on your hands. Always match the box's rating to where it's going to live.

So, next time you're buying a junction box, don't just grab the cheapest one. Have a look at that IP rating. It's a small detail that makes a massive difference to the safety and longevity of your electrical setup, especially if it's anywhere near moisture or the elements.

Indoor vs Outdoor Junction Boxes

Right then, let's talk about junction boxes and where you're planning to stick 'em. It might seem like a small detail, but using the wrong type of junction box, especially outdoors, can lead to all sorts of bother down the line. Think damp getting in, corrosion, or just a general failure because the box wasn't built for the elements.

The main difference really boils down to how well they can keep the weather out. Indoor boxes are generally simpler, designed to keep dust and the odd splash of water away, but they're not meant for rain, snow, or direct sunlight. Outdoor boxes, on the other hand, are built tough. They need to be sealed properly to stop water and dust from getting inside and messing with your connections. This is where IP ratings come into play – you'll see things like IP65 or IP68 mentioned, which tell you how good they are at keeping stuff out. For any outdoor electrical work, you'll want to be looking at weatherproof enclosures that have a decent IP rating.

Here’s a quick rundown:

• Indoor Junction Boxes:

  • Usually made of plastic, sometimes metal.

  • Designed for dry, protected environments like lofts, wall cavities, or inside cupboards.

  • Offer basic protection against dust and accidental splashes.

  • Typically have lower IP ratings (like IP20).

• Outdoor Junction Boxes:

  • Must be robust and weather-resistant.

  • Often made from durable plastics or treated metals to prevent corrosion.

  • Feature seals and gaskets to prevent water and dust ingress.

  • Require higher IP ratings (IP65, IP67, or IP68) depending on exposure.

When you're choosing, always consider the specific location. A box under a sheltered porch might not need the same level of protection as one fully exposed to the elements. It’s better to be a bit over-prepared than to have to go back and fix it later because it wasn't sealed properly.

For outdoor setups, you're looking for something that can handle being out there day in, day out. This means materials that won't rust or degrade quickly, and a lid that seals down tight. You can find a whole range of types of electrical boxes suitable for different jobs, but for outside, the weatherproofing is key. Don't skimp on this bit; it's all about keeping your electrical connections safe and sound, no matter what the weather throws at them.

Explosion-proof / industrial junction boxes explained

Right then, let's talk about junction boxes designed for environments where things could get a bit lively – think factories, workshops, or anywhere with potentially flammable gases or dust. These aren't your average plastic boxes you'd find in a home.

The main job of an explosion-proof junction box is to contain any sparks or explosions that might happen inside, stopping them from setting fire to the surrounding atmosphere. It's a serious bit of kit for serious safety. They're built tough, usually from heavy-duty metal, and are designed to withstand significant pressure if an internal event occurs. This containment is absolutely vital in hazardous locations where explosive atmospheres might be present. You'll often see these referred to as industrial junction boxes because that's where they're most commonly used.

These boxes have to meet really strict standards. They're not just about keeping water out; they're about preventing a small electrical fault from turning into a major incident. Because of this, they typically have very high IP ratings, often IP66 or even higher, meaning they're sealed tight against dust and powerful water jets. It's all about robust protection.

Here's a quick rundown of what makes them different:

• Construction: Usually made from thick cast iron or aluminium, built to last and contain pressure.

• Sealing: Gaskets and robust closures are used to prevent any internal sparks from escaping.

• Certifications: They often carry specific certifications (like ATEX in Europe) that prove they meet explosion-proof standards.

• Installation: Fitting these requires care. They need to be properly grounded, and all entry points for cables must be sealed using appropriate cable glands to maintain the integrity of the enclosure. You can't just shove any old cable into them.

When you're dealing with environments that have a risk of explosion, standard junction boxes just won't cut it. The consequences of using the wrong type of enclosure can be catastrophic. Explosion-proof boxes are a non-negotiable safety measure in these situations, designed to be the last line of defence.

So, if your work involves areas where flammable vapours, dust, or fibres could be present, you absolutely need to be looking at explosion-proof or industrial-grade junction boxes. It’s a critical part of ensuring safety and compliance. For more on their capabilities and how they stack up against regular boxes, you might want to check out this guide on explosion-proof boxes. They are a world away from the standard plastic enclosures you might be used to.

Junction box for lighting circuits

When you're setting up new lights or replacing old ones, the junction box is a really important bit of kit. It’s basically where all the electrical wires meet up and get connected safely. Think of it as the central hub for your lighting circuit. Getting these connections right is key for safety and making sure your lights work properly.

Most standard lighting circuits in homes use simple junction boxes. These are usually made of plastic and are designed to house the wire connectors, like the common push-in or screw-on types. You'll often see them tucked away in ceiling voids or behind access panels. The main job is to keep all those exposed wire ends neatly tucked away and protected from dust, moisture, and accidental contact. This prevents short circuits and potential fires.

Here’s a quick rundown of what goes on inside:

• Live Wire (Brown/Black): This carries the power from your switch to the light fitting.

• Neutral Wire (Blue/White): This completes the circuit, allowing the power to return.

• Earth Wire (Green/Yellow or Bare Copper): This is a safety wire that provides a path for electricity to flow to the ground if there's a fault.

When you're connecting wires, using the right connectors is vital. Push-in connectors are pretty popular now because they're quick and don't need any tools. You just push the stripped wire ends into the correct slots until they click. For older setups, you might still see the classic screw-on wire nuts, which you twist onto the joined wires. Whichever type you use, make sure it's rated for the number and type of wires you're connecting. It’s also a good idea to have a few spare connectors handy, just in case. You can find more about installing electrical junction boxes to make sure you're doing it by the book.

It's not just about connecting wires; it's about creating a reliable and safe point for your lighting system. A well-chosen and properly installed junction box means fewer headaches down the line, like flickering lights or tripped breakers. For most domestic lighting, a basic plastic box will do the job perfectly, provided it's the right size for the number of connections you need to make.

Choosing the right size junction box is also pretty straightforward for lighting. You just need enough space to comfortably fit all the wires and connectors without them being crammed in. Overcrowding a junction box can lead to overheating and damage to the wires. So, if you've got a few connections to make, opt for a slightly larger box. Remember, the goal is a neat, secure, and safe connection point for your lights.

Junction box for outdoor garden wiring

When you're setting up lights or power in your garden, you've got to think about the weather. Rain, sun, maybe even a bit of frost – it all takes its toll on electrical bits. That's where a good outdoor junction box comes in. It's basically a tough little box designed to keep your electrical connections safe and dry.

Think about it: you're running cables for garden lights, a water feature, or maybe even an outdoor socket. All those connections need protecting. Using a standard indoor junction box outside is just asking for trouble. Water can get in, causing corrosion, short circuits, and a whole heap of safety issues. You need something built for the job.

What to look for:

• IP Rating: This is the big one. For outdoor use, you'll want at least an IP55 rating, but ideally, something higher like IP65 or even IP68 if it's going to be exposed to direct rain or potentially submerged (like near a pond).

• Material: Plastic (like ABS) is common and good because it won't rust. Metal ones are also available, but make sure they're properly treated or coated to resist corrosion.

• Sealing: Good quality cable glands are essential. These screw into the box and clamp around the cable, creating a watertight seal. You'll usually need one for each cable going in or out.

• Size: Make sure it's big enough to comfortably house all your connections without cramming wires in. Overcrowding can lead to heat build-up and damage.

Using the right junction box isn't just about keeping things tidy; it's a vital safety measure. It protects your wiring from the elements, preventing potential hazards like electric shocks or fires. Plus, it means your garden lighting will work reliably for years to come.

For garden wiring, you're often dealing with low-voltage systems for lights, but sometimes you might need to bring mains power out for sockets or pumps. Whatever it is, a proper weatherproof junction box is a must. They're designed to be robust and provide a secure enclosure for all those important splices and connections, making sure your garden stays safely lit and powered, whatever the weather throws at it. You can find some great options designed specifically for outdoor use, often made from durable materials like ABS plastic, which are perfect for outdoor or industrial applications.

Junction box for CCTV / security systems

When you're setting up a CCTV or any security system, the junction box plays a surprisingly big role. It's not just a random plastic box; it's where all the important wiring comes together, keeping it safe and sound. Think of it as the central hub for your cameras' eyes and ears.

The main job of a CCTV junction box is to protect the connections between your camera cables and the main power or recording unit. This is super important because these connections are often exposed to the elements, especially if your cameras are mounted outside. A good junction box stops dust, moisture, and even little critters from getting in and messing with your signal or power supply. It also helps to keep the wiring tidy, which makes troubleshooting a lot easier if something goes wrong. You don't want a tangled mess of wires when you're trying to figure out why a camera isn't working, do you?

Here’s a quick rundown of what makes a junction box suitable for security systems:

• Weather Resistance: For outdoor cameras, you absolutely need a box with a good IP rating, like IP65 or higher. This means it's sealed against dust and can handle water jets, so rain or sprinklers won't be an issue. This is key for the longevity of your system.

• Cable Management: Look for boxes with internal space or mounting points for cable ties. This helps keep everything organised and prevents wires from being pulled or stressed.

• Tamper Resistance: Some security-focused junction boxes have features to prevent easy access, adding an extra layer of security against tampering.

• Compatibility: Make sure the box is compatible with the type of cables your CCTV system uses (e.g., BNC connectors, power cables). Some boxes come with pre-drilled holes or glands to make this easier.

Choosing the right junction box can really make a difference in the reliability and lifespan of your CCTV setup. It’s one of those things that’s easy to overlook, but it’s definitely worth getting right. A well-protected connection means fewer headaches down the line and a more dependable security system overall. For more on how to properly protect your wiring, check out this guide on CCTV camera junction box installation.

When selecting a junction box for your CCTV system, always consider the environment it will be in. An indoor setup might get away with a simpler, less rugged box, but an outdoor installation demands robust protection against weather and potential damage. The right choice here prevents costly repairs and ensures your security cameras keep watch without interruption.

Junction box for underground cables

When you're running electrical cables underground, whether it's for garden lighting, an outbuilding, or even just extending power to a distant part of your property, you need to be extra careful about how you protect those connections. That's where a specialised underground junction box comes in. These aren't your average indoor boxes; they're built tough to withstand the elements and the ground itself.

The main job of an underground junction box is to keep moisture and dirt out of your electrical connections. Think about it – buried in the soil, these boxes are constantly exposed to dampness, potential flooding, and all sorts of grit. A standard junction box would fail pretty quickly in these conditions, leading to corrosion, short circuits, and a whole heap of electrical trouble.

So, what makes them different? Well, for starters, they need a really good seal. You'll often see them with high IP ratings, like IP67 or IP68, which basically means they're dust-tight and can handle being submerged in water. They're usually made from robust plastic or sometimes metal, designed to be durable and resist corrosion. Installation is key here; you want to make sure it's buried deep enough to be protected from accidental digging and that the seals are properly seated when you close it up.

Here’s a quick rundown of what to look for:

• High IP Rating: Aim for at least IP67, but IP68 is even better for full submersion protection.

• Durable Construction: Look for UV-resistant plastic or corrosion-proof metal.

• Secure Sealing: Glands or grommets for cable entry are vital to maintain the waterproof seal.

• Sufficient Space: Make sure there's enough room inside for your connections without cramming wires together.

When burying cables, always check your local regulations regarding depth and any required warnings or markers. It’s not just about protecting the cable; it’s about safety for anyone working on the ground later.

Choosing the right box is the first step, but proper installation is just as important. You'll want to ensure the cables entering the box are also protected, often using cable glands to maintain that watertight seal. If you're unsure about the process, it's always best to consult a qualified electrician or refer to detailed installation guides for underground electrical work. Getting this right means your underground connections will be safe and reliable for years to come. For more on getting started with underground installations, check out this guide on installing an underground box.

Junction box for solar panels

When you're setting up a solar panel system, whether it's for your home or a larger project, the junction box plays a pretty vital role. It's basically the central hub where all the individual solar panel strings connect before heading off to your inverter. Think of it as the main handshake point for all that generated power.

Choosing the right junction box is key to a safe and efficient solar setup. You'll want something that's built to last and can handle being out in the elements. Most solar junction boxes are designed to be weather-resistant, which is a big deal when you consider they're usually mounted on the roof or near the panels themselves. This means they need to stand up to sun, rain, and maybe even a bit of snow.

Here are a few things to keep in mind:

• IP Rating: This is super important. For solar, you're generally looking at a minimum of IP67, which means it's protected against dust and temporary immersion in water. For really harsh or coastal environments, you might even need to go for an IP68 rating, offering even better protection against water ingress. This is crucial for preventing corrosion and ensuring the longevity of your connections, especially in places like coastal areas where salt spray is a factor.

• Material: While plastic boxes are common, some systems might benefit from metal ones, especially if there are specific environmental or safety requirements. However, plastic is often lighter and easier to work with.

• Connectivity: Make sure the box has enough terminals or connection points for all your panel strings. It's better to have a bit of extra space than to be struggling to fit everything in.

• UV Resistance: If the box is going to be exposed to direct sunlight for long periods, ensure it's made from UV-resistant materials to prevent it from degrading over time.

The junction box is where all the positive and negative wires from your solar panels meet. It's essential that these connections are secure and protected from the weather to avoid power loss or potential hazards. A well-chosen box ensures that the electricity generated by your panels can flow safely and reliably to the rest of your system.

When you're looking at options, you might see boxes specifically designed for solar applications. These often come with features like pre-installed connectors or specific mounting brackets. Always check the manufacturer's specifications to make sure it's suitable for your particular solar setup and the environment it will be in. Getting the right junction box for solar panels is a small but significant step towards a robust and reliable renewable energy system.

What size junction box do I need?

Choosing the right size junction box is more important than you might think. It's not just about having enough space for your wires; it's about safety and making sure everything is installed correctly according to regulations.

The main thing to consider is the volume of the box, measured in cubic inches. This volume needs to accommodate all the wires, connectors, and any devices that will be inside. A box that's too small can lead to wires being squashed, connections being stressed, and potentially overheating. On the other hand, a box that's excessively large might be overkill and harder to manage.

Here’s a general idea of what you might need:

• Minimum Recommended Volume: For most standard domestic wiring, aim for a box with at least 18 cubic inches of space. This is a good starting point for simple connections.

• Preferable Volume: If space allows, a box around 22.5 cubic inches is often better. This gives you a bit more breathing room, making the wiring process easier and reducing the risk of cramming everything in.

• Larger Installations: For more complex setups, like those involving multiple switches, outlets, or a high number of wire splices, you'll need to calculate the required volume more precisely. This often involves using box-fill rules, which take into account the number and size of wires, as well as any devices like switches or sockets. You might need to refer to specific electrical codes, like the NEC (National Electrical Code) in some regions, to determine the exact requirements. For instance, NEC 314.16 provides detailed rules for calculating box fill.

When you're figuring out the size, don't forget to account for everything that goes inside: the wires themselves, wire connectors (like wire nuts), and any devices such as switches or outlets. It's always better to have a little extra space than not enough.

If you're dealing with pulling wires through a box rather than just making splices, different rules might apply, known as pull-box rules. These are generally for larger installations where wires are being routed through a box to change direction. For most typical home wiring jobs, focusing on the internal volume for splices is the key. Remember, using a box that's too small is a common mistake, so always double-check the dimensions and your calculations. If in doubt, opting for a slightly larger junction box is usually the safer bet.

How many wires in a junction box?

Right then, let's talk about how many wires can actually go into a junction box. It's not just a free-for-all, you know. There are rules, and they're there for a good reason – safety, mostly. You don't want wires getting all crammed in there, making it hard to work on or, worse, causing a fire hazard.

The main thing to remember is that a junction box has a specific volume, and you can't exceed it. This is often referred to as the box fill. The idea is that all the wires, connectors, clamps, and any other bits and bobs inside need enough space so they don't get squashed or overheat. It's all about giving them room to breathe, in a manner of speaking.

So, how do you figure out the limit? Well, it's usually dictated by the size of the box itself and the type and gauge of the wires you're using. For instance, a bigger box can obviously take more wires than a tiny one. And thicker wires take up more space than thinner ones.

Here’s a general idea of what you might find:

• Small plastic boxes: Often found in domestic lighting circuits, these might typically accommodate around 3-4 standard household wires (like 1.5mm² or 2.5mm² twin-and-earth). This includes the connectors, mind you.

• Medium-sized metal boxes: Used for more complex setups or where you might have more connections, these could handle maybe 5-7 wires.

• Larger industrial boxes: These are built for heavy-duty work and can house a significantly larger number of wires, sometimes ten or more, depending on the specific box and the regulations it needs to meet.

It's not just about the number of wires, though. You also need to consider the wire connectors, like those handy wire nuts. Each one takes up a bit of space inside the box. The National Electrical Code (NEC) has specific guidelines on how to calculate this box fill, and it's worth having a look at NEC requirements for junction boxes if you're doing anything more than a simple light fitting.

The key is to ensure that no component inside the box is compressed or damaged. This means leaving enough free air space for heat dissipation and preventing strain on the connections. Overcrowding is a common mistake that can lead to electrical issues down the line.

Ultimately, if you're ever in doubt, it's always best to err on the side of caution. If a box looks like it's getting a bit too full, it probably is. You might need a larger junction box or to split the connections into two separate boxes. Better safe than sorry, as they say.

Junction box amp ratings explained (5A, 20A, 30A)

When you're looking at junction boxes, you'll often see numbers like 5A, 20A, or 30A mentioned. These aren't just random figures; they refer to the amperage rating of the box, which is a really important safety specification. Essentially, it tells you the maximum amount of electrical current the box can safely handle.

Think of it like this: the amperage rating is the box's limit. You wouldn't want to push more electricity through it than it's designed for, as that could lead to overheating and, well, trouble. It's all about matching the box to the circuit it's protecting.

Here's a quick rundown of what those common ratings generally mean:

• 5A Rating: These are typically for very low-power circuits, often found in lighting applications or for specific low-draw devices. You won't find these used for general power outlets.

• 20A Rating: This is a common rating for circuits that power standard wall sockets in homes. It's suitable for most everyday appliances like toasters, kettles, and televisions. When selecting wire for these circuits, 12-gauge wire is generally suitable for 20 amps [671f].

• 30A Rating: You'll see 30A ratings for circuits that need to handle more power, such as those supplying ovens, large power tools, or sometimes even electric vehicle charging points. For a 30A breaker on a continuous circuit, you'll need wire rated for at least 37.5A, such as 10 AWG or larger [ad6d].

It's not just about the junction box itself, though. The wiring connected to it also needs to be rated appropriately. You can't put a 30A circuit through a junction box if the wires feeding into it are only rated for 15A, for example. Everything needs to be in sync.

Always check the manufacturer's specifications for the exact rating of a junction box. Don't guess or assume. Using a junction box with an insufficient amp rating is a serious safety hazard and can lead to overheating, damage to the box, and potentially a fire. It's always better to err on the side of caution and choose a box with a rating that comfortably exceeds the expected load of the circuit.

So, when you're planning your electrical work, whether it's for a new lighting circuit or extending power to a workshop, pay close attention to these amp ratings. It's a simple step that makes a big difference to the safety and reliability of your installation.

Best junction boxes for outdoor use (UK)

Right then, let's talk about keeping your outdoor electrical connections safe and sound here in the UK. When you're dealing with wiring outside, whether it's for garden lights, security cameras, or even that fancy patio heater, you can't just use any old junction box. The weather here can be pretty brutal – we're talking rain, wind, maybe even a bit of frost. So, you need something that can stand up to it all.

The key thing to look for is the IP rating. This tells you how well the box is protected against dust and water. For outdoor use, you'll generally want something with at least an IP55 rating, but honestly, for anything exposed to the elements, IP65 or higher is the way to go. This means it's pretty much dust-tight and can handle jets of water. If it's going to be submerged, like near a pond or in a damp spot, you'll need an IP68 rated box.

When you're choosing, think about the size you need. You don't want to be cramming wires in, making it a nightmare to work with or potentially damaging them. It's always better to have a bit of extra space. Also, consider the material. While plastic is common and often cheaper, metal boxes can offer extra durability, especially if they're galvanised or powder-coated to resist rust. Some of the best options you'll find are from manufacturers specialising in weatherproof electrical enclosures, offering a range of robust solutions.

Here are a few things to keep in mind:

• Durability: It needs to withstand UV rays, temperature changes, and physical impact.

• Sealing: Look for good quality seals around the lid and any cable entries. These are often the weak points.

• Ease of Installation: Some boxes come with pre-drilled holes or mounting brackets, which can make life a lot easier.

• Cable Entry: Make sure the box has suitable glands or knockouts for the type and size of cables you're using. You might need specific cable glands to maintain that all-important waterproof seal.

For basic garden lighting or low-voltage setups, you might find perfectly adequate IP65 junction boxes that won't break the bank. But if you're running mains voltage or have critical equipment like CCTV, investing in a higher-rated, more robust box is a no-brainer. It’s about peace of mind, really. You don't want to be going back out in the rain to fix a connection that failed because the box wasn't up to scratch.

Remember, electrical work outdoors carries extra risks. Always make sure the power is off before you start, use the correct tools, and if you're ever in doubt, get a qualified electrician to do the job. Safety first, always.

Top IP68 waterproof junction boxes

When you're dealing with electrical connections that are going to be exposed to the elements, or even submerged, you need something seriously robust. That's where IP68 rated junction boxes come into their own. These aren't your average plastic boxes; they're built to keep water and dust firmly on the outside, no matter what.

The IP68 rating means a junction box is dust-tight and protected against continuous immersion in water. This makes them ideal for a whole host of applications, from outdoor lighting and garden power to marine installations and even underground cable splicing. You can be pretty confident that your connections are safe and sound, even if they end up under a bit of water for a while. We're talking submersion up to a certain depth for a set period, usually specified by the manufacturer, but generally, it's a serious level of protection.

What makes them so good? Well, it's all about the design and materials. They typically feature:

• Sealed Enclosures: These are designed to be completely sealed, often with robust locking mechanisms or screw-down lids.

• Glands or Cable Entries: Specialised glands are used to create a watertight seal around the cables entering the box, preventing any moisture ingress.

• Durable Materials: Often made from tough plastics like PA66 nylon, which is flame-retardant and resistant to UV and corrosion, or sometimes robust metal alloys for industrial settings.

When you're looking for the best, consider what you'll be connecting. Some boxes are designed for specific wire gauges, like 20-10 AWG wires, while others offer more flexibility. It's also worth thinking about the size you need. A compact box might be perfect for a small garden light, but you'll need something larger if you're joining multiple thicker cables.

Choosing an IP68 junction box isn't just about ticking a box; it's about ensuring the long-term safety and reliability of your electrical installations in challenging environments. Don't skimp on this vital component if your wiring is exposed to moisture or the risk of submersion.

For example, you might find a 4-pack of M20 junction boxes that are not only waterproof but also dustproof and sun-resistant, making them a solid choice for general outdoor use. Always check the specific submersion depth and duration the manufacturer guarantees, as this can vary slightly between products, but the core principle of high-level protection remains the same.

Best junction boxes for electricians

When you're working as an electrician, having the right gear is half the battle, and that includes your junction boxes. It's not just about having a box; it's about having the right box for the job. You need something reliable, safe, and that meets all the regulations. Think about it – these little boxes are the unsung heroes of your wiring jobs, keeping connections tidy and protected.

For electricians, the choice often comes down to a few key factors: durability, ease of installation, and suitability for the environment. Metal boxes, for instance, offer a robust solution, especially in industrial settings or where there's a risk of physical damage. They're tough and can handle a bit of rough and tumble. On the other hand, polycarbonate boxes are lighter and resist corrosion, making them a great choice for many applications, including outdoor use where moisture is a concern. You can find some excellent polycarbonate junction boxes that are built to last.

Here's a quick rundown of what most electricians look for:

• Material: Metal (steel, aluminium) for strength, or high-quality polycarbonate for weather resistance and lighter weight.

• IP Rating: Essential for knowing how well it protects against dust and water. For outdoor or damp areas, you'll be looking at IP65 or higher.

• Size and Capacity: Enough space to make connections without cramming wires in. Overcrowding is a big no-no for safety and future maintenance.

• Entry Points: How many cable entries you need and whether they're pre-drilled or knock-outs you can adapt.

• Fixing Methods: How it attaches to the wall or surface – screw holes, mounting plates, etc.

Choosing the right junction box isn't just about ticking a box; it's about ensuring the long-term safety and reliability of the electrical installation. A well-chosen box prevents future problems, saving you callbacks and keeping your clients happy.

When you're dealing with outdoor projects, for example, you can't just grab any old box. You need something that can withstand the elements. There are some really solid options out there specifically designed for outdoor use, offering protection against rain, sun, and temperature changes. Checking out guides on outdoor-rated junction boxes can give you a good idea of what's available and what performs well.

Ultimately, the 'best' junction box for an electrician is one that makes their job easier, safer, and results in a professional, compliant finish. It’s about having confidence in the components you’re using, knowing they’ll do their job properly for years to come.

Finding the right junction boxes is key for any electrician's toolkit. These handy enclosures keep your wiring safe and tidy, protecting connections from dust and moisture. Whether you're working on a small home project or a big job, having reliable boxes makes all the difference.

Ready to upgrade your electrical supplies? Check out our range of top-quality junction boxes on our website today!

Wrapping Up: Your Junction Box Journey

So, there you have it. We've gone through the different kinds of junction boxes, what they're used for, and how to figure out their IP ratings. It might seem like a small detail in the grand scheme of electrical work, but getting the right junction box and installing it properly is a big deal for safety and making sure everything runs smoothly. Don't skimp on this bit; it's worth the effort to get it right. Whether you're a seasoned pro or just starting out, remembering these basics will help keep your electrical projects safe and sound.
