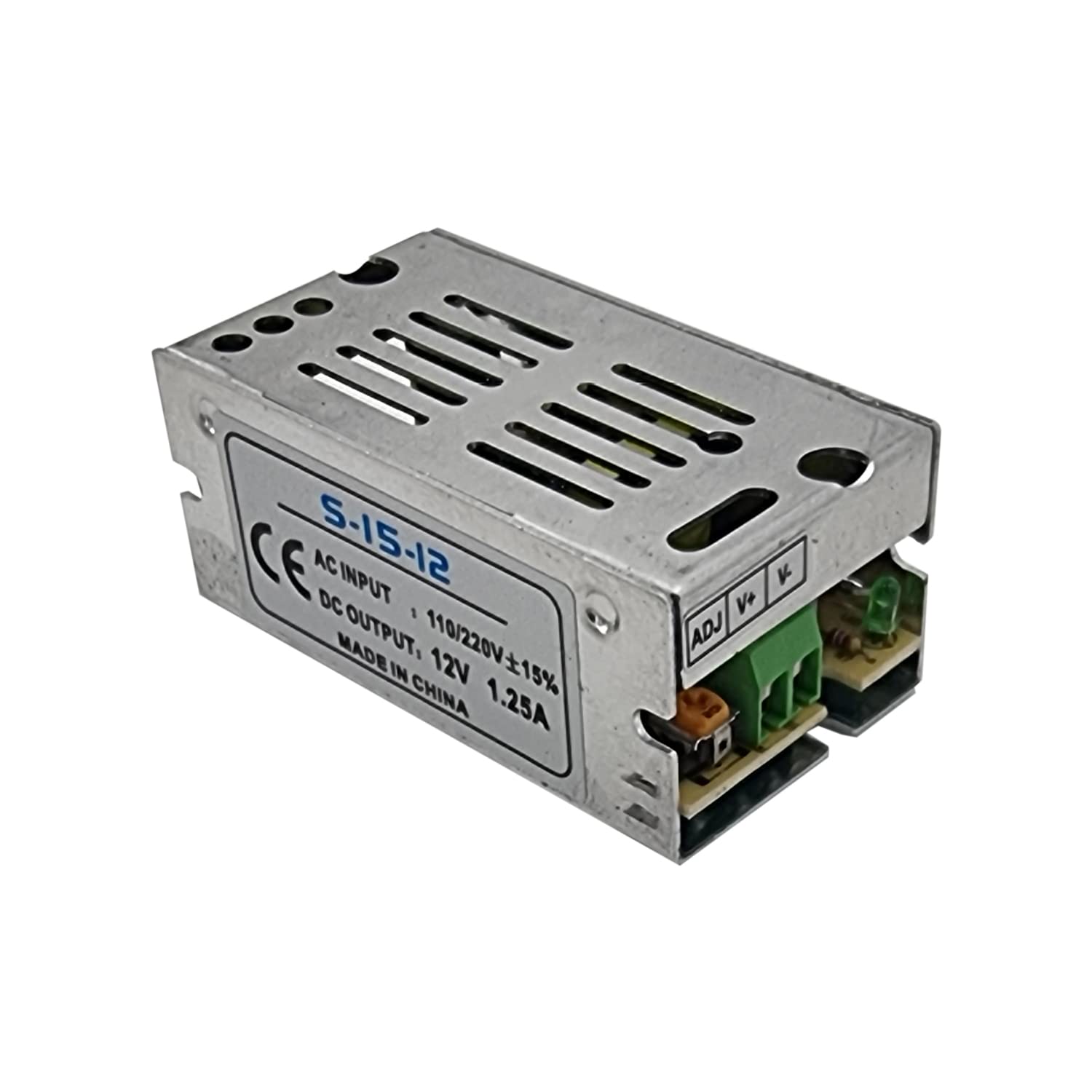

AC 100V-240V 12V LED Driver IP20 Constant Voltage Transformer ~1406

-17%

LEDSone

AC 100V-240V 12V LED Driver IP20 Constant Voltage Transformer ~1406

Name: AC 100V-240V 12V LED Driver IP20 Constant Voltage Transformer ~1406
Brand: LEDSone
SKU: 12IP2012
Price: 2.75 GBP
Availability: InStock

£2.75 GBP

~~£3.30 GBP~~

Wattage: 12W

Product variants

Features

Stable Constant Voltage Output: Converts AC 100–240V to regulated DC 12V, providing reliable and flicker-free power for LED lighting systems.
Non-Dimmable Switching Power Supply: Designed for constant voltage LED applications where dimming is not required.
Heavy-Duty Metal Housing: Aluminium alloy casing with honeycomb ventilation design improves heat dissipation and extends service life.
Built-In Safety Protection: Integrated short-circuit, overload, and over-voltage protection ensures safe and stable operation.
Efficient Cooling Design: Higher-wattage models include built-in cooling fan for enhanced thermal management.
Wide Application Range: Ideal for LED strip lights, LED displays, CCTV systems, radios, 3D printers, computer projects, industrial automation, and wireless routers.

Specifications / Technical Details

Item Type: Universal Regulated Switching Power Supply
Shell Material: Aluminium Alloy
Input Voltage: AC 100–240V
Output Voltage: DC 12V
Output Power Range: 12W – 720W (variant dependent)
Output Current: 1A – 60A (variant dependent)
Connection Type: Screw Terminals
Working Temperature: -10°C to 60°C
Dimmable: No
IP Rating: IP20 (Indoor Use Only)

Package Includes

1 x DC 12V Universal Regulated Switching Power Supply

Refer to the table for detailed technical information. (Power: 12W to 720w, Amp: 1A - 60A, Input Voltage: AC 100V–240V)

Power & Size Reference Table

Power	Input Voltage	Output Current	Size (L×W×H)	Fan	Outputs
12W	100–240V	1A	71×39×31mm	No	1
24W	110–220V	2A	85×59×33mm	No	1
60W	110–220V	5A	110×80×35mm	No	1
100W	110–220V	8.5A	160×100×42mm	No	2
150W	110–220V	12.5A	200×100×45mm	No	2
240W	110–220V	20A	199×110×50mm	No	3
360W	110–220V	30A	216×114×50mm	Yes	3
720W	100–220V	60A	250×135×70mm	Yes	3

Notes Section

This is a constant voltage, non-dimmable LED driver designed for indoor use only (IP20).
Always choose a power supply with at least 25% higher wattage than your total LED load.
Example: For a 75W LED load, use a 100W or higher transformer.

Estimate delivery times: 1-3 days (UK), 5-10 days (Europe).

Available: instock

AC 100V-240V 12V LED Driver IP20 Constant Voltage Transformer ~1406

£2.75 GBP

~~£3.30 GBP~~

Description

Features

Stable Constant Voltage Output: Converts AC 100–240V to regulated DC 12V, providing reliable and flicker-free power for LED lighting systems.
Non-Dimmable Switching Power Supply: Designed for constant voltage LED applications where dimming is not required.
Heavy-Duty Metal Housing: Aluminium alloy casing with honeycomb ventilation design improves heat dissipation and extends service life.
Built-In Safety Protection: Integrated short-circuit, overload, and over-voltage protection ensures safe and stable operation.
Efficient Cooling Design: Higher-wattage models include built-in cooling fan for enhanced thermal management.
Wide Application Range: Ideal for LED strip lights, LED displays, CCTV systems, radios, 3D printers, computer projects, industrial automation, and wireless routers.

Specifications / Technical Details

Item Type: Universal Regulated Switching Power Supply
Shell Material: Aluminium Alloy
Input Voltage: AC 100–240V
Output Voltage: DC 12V
Output Power Range: 12W – 720W (variant dependent)
Output Current: 1A – 60A (variant dependent)
Connection Type: Screw Terminals
Working Temperature: -10°C to 60°C
Dimmable: No
IP Rating: IP20 (Indoor Use Only)

Package Includes

1 x DC 12V Universal Regulated Switching Power Supply

Refer to the table for detailed technical information. (Power: 12W to 720w, Amp: 1A - 60A, Input Voltage: AC 100V–240V)

Power & Size Reference Table

Power	Input Voltage	Output Current	Size (L×W×H)	Fan	Outputs
12W	100–240V	1A	71×39×31mm	No	1
24W	110–220V	2A	85×59×33mm	No	1
60W	110–220V	5A	110×80×35mm	No	1
100W	110–220V	8.5A	160×100×42mm	No	2
150W	110–220V	12.5A	200×100×45mm	No	2
240W	110–220V	20A	199×110×50mm	No	3
360W	110–220V	30A	216×114×50mm	Yes	3
720W	100–220V	60A	250×135×70mm	Yes	3

Notes Section

This is a constant voltage, non-dimmable LED driver designed for indoor use only (IP20).
Always choose a power supply with at least 25% higher wattage than your total LED load.
Example: For a 75W LED load, use a 100W or higher transformer.
