Conduit lighting systems are the perfect solution for those looking to enhance their space with a combination of industrial flair and practical functionality. The 20mm conduit system, made of durable metal components, provides both strength and style, making it ideal for a wide range of applications. Whether you're looking to create a modern ambiance or achieve a more industrial aesthetic, conduit lighting offers versatility in design while ensuring long-lasting durability. From conduit pipes and lamp holders to switches and light fixtures, each part plays a crucial role in building a lighting system that is as functional as it is visually appealing. In this guide, we will delve into the essential components of a full 20mm conduit lighting system, highlighting their features, benefits, and how they work together to create an efficient and stylish lighting solution for any space.

20mm Female Thread Pipe

Material: Metal

Purpose: This pipe is used to route wiring and provide structural support in conduit lighting systems. Available in various lengths, it allows for flexible installation based on room layout and desired style.

Features & Benefits:

• High-strength, durable metal construction ensures long-lasting performance.
• Rust-resistant, making it suitable for both indoor and outdoor environments.
• Protects electrical wiring while giving a sleek, industrial appearance.
• Note: Connects seamlessly to threaded conduit pipes using a standard steel nipple, ensuring a secure and reliable fit.
• Available Lengths: 20 cm, 30 cm, 50 cm, 80 cm



Hollow Thread Screw

Material: Galvanized Steel

Purpose: Provides a secure connection for conduit pipe lighting systems.

Features & Benefits:

• Galvanised steel construction ensures durability and corrosion resistance.
• 20mm male thread size for a secure and compatible fit.
• Can be tightened by hand or with a screwdriver for ease of installation.
• Suitable for both indoor and outdoor lighting setups.

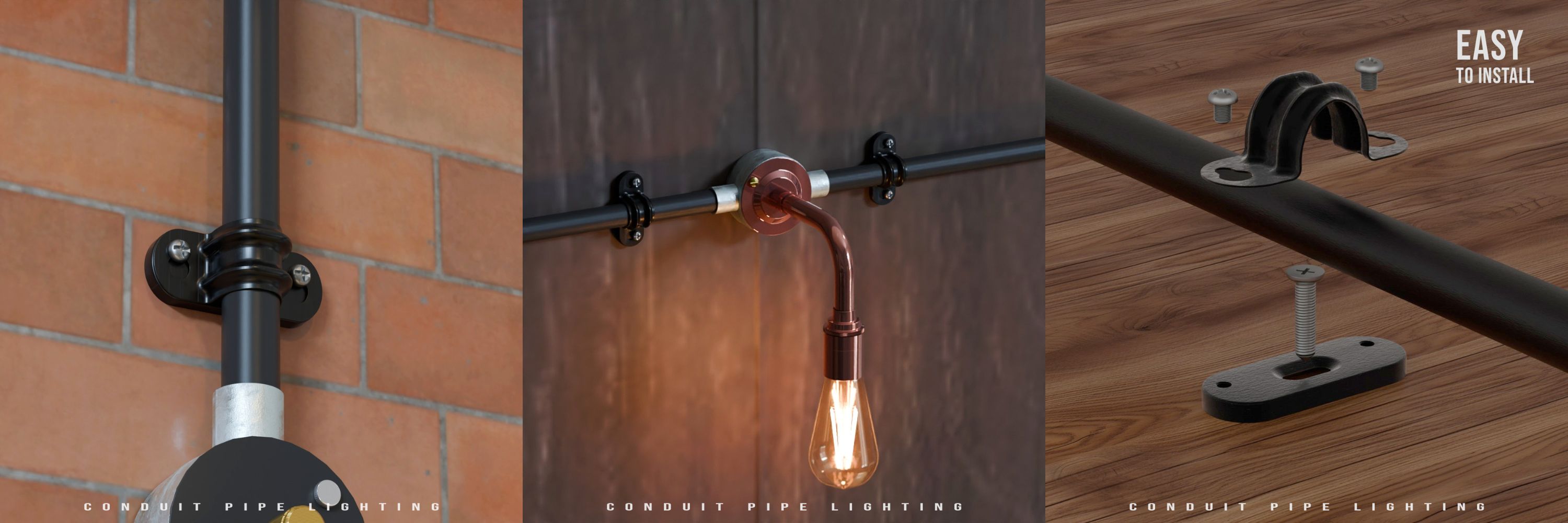

20mm Distance Saddle Mount Metal Bracket

Material: Metal

Purpose: Keeps conduit pipes securely in place at a fixed distance from the surface, ensuring proper alignment and support.

Features & Benefits:

• Corrosion-resistant metal for durability.
• Easy installation with screws.
• Provides secure mounting and allows for easy adjustments during setup.



90-Degree Two Types Of Bend

90-Degree Bend (Smooth Angle Bend)

• Material: Metal
• Colour: Black, White, Yellow Brass, Satin Nickel, Chrome, French Gold, Copper, Rose Gold
• Description: This smooth bend allows conduit to curve gently around obstacles, maintaining the integrity of the wires inside by creating a gradual angle instead of a sharp turn.



 90-Degree Bend (Sharp Angle Bend)

• Material: Metal
• Colour: Black
• Description: Provides a sharp 90-degree turn, changing the direction of the conduit precisely at a right angle. Ideal for tight spaces or when an exact directional shift is required.

20mm Conduit Solid Tee 3-Way Connector

Material: Metal

Purpose: Facilitates branching connections between conduit pipes for efficient wiring configurations.

Colour: Black

Features:

• Durable Metal Build: Offers exceptional durability and corrosion resistance for long-lasting use.
• 3-Way Connector: Enables branching connections between conduit pipes for flexible and efficient wiring setups.
• Perfect Fit for 20mm Conduit: Designed to seamlessly connect to standard 20mm threaded conduit systems



Terminal Outlet Box (1/2 Way, 2 Angle Way [L], 3-Way Tee, 4-Way - 20mm)

Material: Galvanized Steel

Purpose: The outlet box serves as the termination point for conduit lines, providing a secure location for making electrical connections. It supports multiple outlet configurations depending on the system’s requirements.

Features & Benefits:

• Supports various electrical setups with 1, 2, 3, or 4 outlets.
• Durable galvanised steel construction ensures strength and corrosion resistance.
• Provides safe and secure wiring connections for reliable performance.
• Available Types: 1/2 Way, 2 Angle Way [L], 3-Way Tee, 4-Way

Conduit 20mm Metal Dome Cover

Material: Metal

Purpose: Provides a protective cover for conduit boxes, securing electrical connections from external elements.

Colour: Black, Yellow Brass, Rose Gold, Satin Nickel, Copper, White, Chrome, and French Gold

Features:

• Durable Metal Build Ensures longevity and resistance.
• Perfect Fit  Designed for secure attachment to 20mm conduit systems.
• Indoor & Outdoor Use  versatile applications.



Circular Conduit Box Lid Black

Material: Metal

Finish: Black

Features & Benefits:

• Sleek black finish offers a polished look and corrosion resistance.
• Compatible with standard 20mm conduit fittings, ideal for securing and protecting wiring connections.
• Versatile for both indoor and outdoor electrical installations.



20mm Conduit Entry Lampholder

Material: Metal

Purpose: Securely attaches to conduit pipes for easy installation of light fixtures, with versatile finish options.

Features & Benefits:

• Durable and heat-resistant for long-lasting use.
• Compatible with standard 20mm conduit systems.
• Available colours: satin nickel, yellow brass, copper, chrome, and rose gold.

Thread Holder for threaded connections.

Plain Holder for non-threaded installations.

20mm to 10mm Conduit Lighting Bush Converter

Material: Metal

Purpose: Converts 20mm conduit fittings to 10mm for seamless integration in lighting systems.

Features & Benefits:

• Easy-to-install push-fit design for a secure and quick connection.
• Durable construction, resistant to corrosion for long-lasting performance.
• Provides a reliable, tight seal to prevent water or dirt ingress.
• Compatible with standard 20mm and 10mm conduit fittings, offering flexibility in various lighting setups.

Switches

Dimmer Rotary Switch

Material: Metal

Purpose: Combines on/off control with brightness adjustment using a classic rotary mechanism.

Features & Benefits:

• Smooth rotary action for effortless control.
• Durable metal construction ensures long-lasting performance.
• Stylish finish adds a vintage or industrial touch to any lighting setup.
• Enables precise brightness control, enhancing ambiance.
• Compatible with dimmable bulbs, allowing full customisation of light intensity.

ON-OFF Switch

Material: Metal

Purpose: Provides simple on/off control for lighting fixtures.

Features & Benefits:

• Easy-to-use design for quick and reliable operation.
• Compact and space-saving, perfect for small spaces.
• Durable construction for extended usability.
• Compatible with most bulb types, offering flexibility in lighting setups.

Conduit Lighting Methods: A Comprehensive Overview

Bulkhead Cage Lights

Best For: Wall or Ceiling Lighting

Description: Rugged, industrial-style lights with a metal cage and impact-resistant glass. Ideal for high-traffic areas like patios, garages, and bathrooms. Fully dimmable with a compatible bulb and switch.

Color: Black, Brushed Copper, Light Blue, Grey, Pink

Benefits:

• Strong metal construction for harsh environments
• Impact-resistant, ideal for indoor use
• Adjustable brightness for customizable lighting



Pendant Light (Using Shade or Cage)

Best For: Ambient Lighting

Benefits:

• Versatile design options
• Perfect for modern or industrial spaces



Ceiling Light (Using Metal Terminal Outlet Box + Dome cover )

Best For: General Lighting

Description: Easily installed using a metal terminal outlet box for a secure modern lighting solution.

Benefits:

• Easy and secure installation
• Clean, modern design

Swan Neck Wall Light

Best For: Spot Lighting (Non-Adjustable)

Description: A sleek, minimalist wall light for accent lighting.

Color: White, Black

Benefits:

• Adds a stylish touch to walls
• Complements an industrial aesthetic

Nautical Fisherman Wire Cage Light

Best For: Wall or Ceiling Lighting

Description: Rugged, weathered metal cage with a polished finish, ideal for coastal or industrial decor. Connects to 3/4-inch conduit, with a 3/4 to 20mm bush for 20mm pipes.

Color: Grey, Yellow, Green

Benefits:

• Strong metal construction
• Impact-resistant
• Adjustable brightness

Conclusion

A 20mm conduit lighting system is a robust, flexible, and stylish choice for those seeking durable and industrial-inspired lighting solutions. Built from high-quality metal components, it offers strong structural support while protecting wiring, making it ideal for various environments, including both indoor and outdoor settings. The system’s industrial aesthetic pairs well with modern and minimalist styles, enhancing spaces such as apartments, offices, or commercial interiors. Core components, like female-thread pipes, distance saddle mounts, and a range of light fixtures, create a customizable framework that can be adjusted to suit specific layouts and designs. Finishes in options like satin nickel, rose gold, and black add to its visual versatility. Light fixture choices—Bulkhead Cage Lights, Pendant Lights, and Swan Neck Wall Lights—serve various lighting needs from ambient to accent lighting, with dimmable options available for precise brightness control. Installation is straightforward due to well-designed brackets, outlet boxes, and holders that provide a secure fit, ensuring a clean and organized look. Combining durability, style, and ease of installation, a 20mm conduit lighting system is a smart, long-lasting investment that enhances any space with a practical, modern aesthetic.
